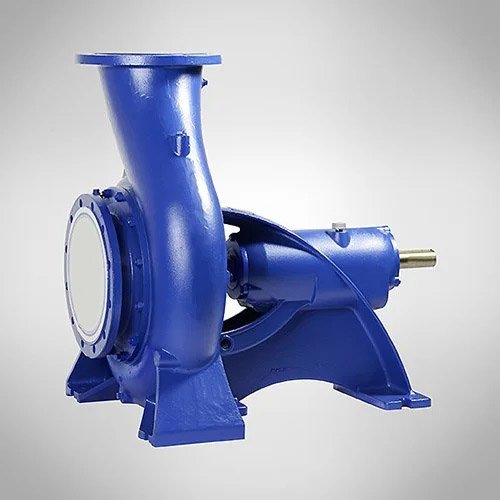

(EA) High Delivery Centrifugal Pumps

Description

A Horizontal high delivery pump, is with a cylindrical body, single floored, single impeller, distinct motor, and single central suction. This pump is utilized in industrial and farm consumptions and transferring hot water.

A Horizontal high delivery pump, is with a cylindrical body, single floored, single impeller, distinct motor, and single central suction. A chrome-nickel steel bush protects the pumps axis/tube. Radial and axial forces that are implemented on the pump’s axis/tube are centered on two ball bearings that are located on one side of the impeller. Dynamic balance is present in the impeller and using graphite tape, the tube/axis is secured. The bearings are lubricated using oil and based on customer request, lubrication can be done with grease as well .

High Delivery Centrifugal Pumps (EA) Utilization :

• Water transfer for farm, city, and industrial use
• Hot Water transfer in heating and cooling facilities

High Delivery Centrifugal Pumps (EA) Details :

• External Diameter: 100 to 300 mm
• Watering Capacity: 40 to 1800 m³/h
• Height: 5 to 90 m
• Temperature of fluid in sealing: -10 to 110 degrees Celsius on sealing tape and -10 to 140 on mechanical sealing tape.
• Pressure Test: 12 Bars
