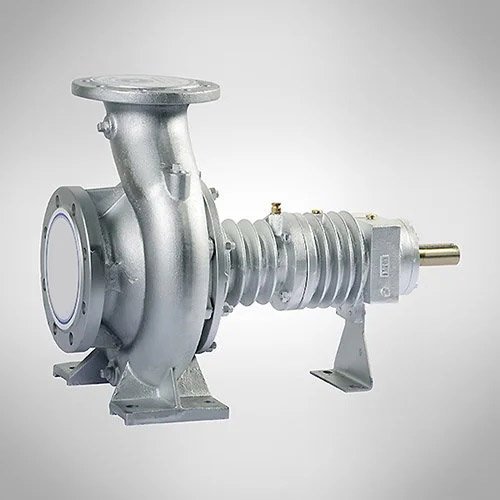

Hot Oil ElectroPumps (HOP)

مضخة آبار PV4 PV4 borehole pump
0 out of 5

Categories: ,

Description

A centrifugal pump is used to power the MHOP hot oil pump. This pump has an extremely unique design. This pump is designed for oil circulation and pumping at temperatures of up to 300°C. Centrifugal suction is used in this horizontal single-story pump. A scroll shell forms the chamber of this pump.

The following are the characteristics of the pump :

  • Pump impeller: It is well-balanced hydraulically.
  • Installing the impeller: Pendant-shaped.
  • Scroll shell: Mounted.
  • Bearing chamber:
  • Pump type: Centrifugal.
  • Suction direction: Horizontal.
  • Thrust: Vertical.
  • Flanges: according to standard, DIN 1092 – 2 – PN10

With two deep groove bearings, this pump is capable of pumping any type of oil up to 300 degrees Celsius.

Sealing the shaft of this pump is a two-step process that occurs in the sealing chamber of the pump, which is accessible via the chamber’s cover. A refractory graphite tape is used to seal the shaft, and a mechanical seal is used to seal the bearing chamber’s end.

Critical Applications of  Hot Oil ElectroPumps (HOP) :

  • chemical industry.
  • Pharmaceutical industry.
  • Electrical industry.
  • Industry de la nourriture (Also called food industry).
  • Industries that manufacture paints.
  • Plastic industry.
  • Textile Manufacturing Industry.
  • Steel manufacturing industries.
  • Leather and paper industries.

General Properties of Hot Oil ElectroPumps (HOP) :

  • Outlet diameter of the Pump: 32 to 100 mm.
  • Discharge pf water (yield): Up to 350 cubic meters per hour.
  • Pump height: Up to 95 meters.
  • Fluid temperature (in sealing): Up to 300 °C.
  • Pump test pressure: 15 Bar.
