MD-High-Pressure-Pump

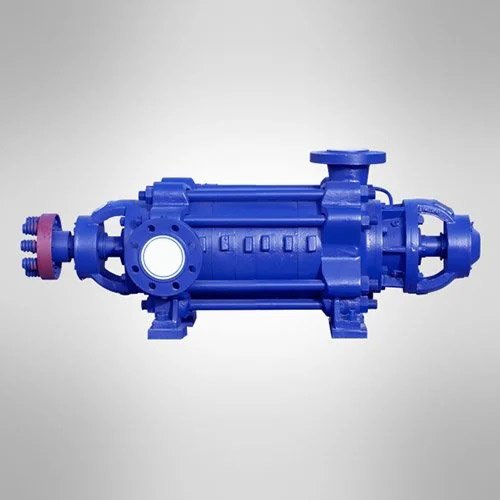

MD High-Pressure Pump

Multi-Stage Double Suction Pumps
0 out of 5

Categories: ,

Description

One class of high-pressure pumps is MD high-pressure pump that is produced and released by PUMPIRAN Company.

MD centrifugal pump has the following structure:

  • Equipped with between bearing impellers
  • Independent motor
  • Multistage pump
  • Radial-cut chamber
  • Paper gasket or O-ring for sealing each floor
  • Producing integrated casting of support bases with suction and discharge chamber (Volute)
  • Deleting axial and radial loads of the shaft by oil-lubricated bearings
  • Disc balance to neutralize axial loads

MD High-Pressure Pump Application :

MD Multistage pump has a significant and effective application in industry and agriculture due to the special design. However, we introduce MD high-pressure pump applications in this section.

  • Transferring fresh and natural water
  • Water transfer at temperatures below 80 degrees Celsius
  • Sprinkling
  • Condensing water pumping
  • Hot-water and cold-water pumping
  • Booster pump
  • Firefighting

Technical Specification of  MD High-Pressure Pump :

  • – Output diameter: 50 to 150 mm
  • – Flow rate: up to 200 cubic meters per hour
  • – Head: 50 to 700 meters
  • – The fluid temperature in sealing: up to 80 degrees Celsius when sealing
  • – Test pressure: 100 bars
