Understanding Ductile Iron Pipe Weight: A Comprehensive Guide
Ductile iron pipes are widely used in water and wastewater systems due to their corrosion resistance and strength, which last for decades. Understanding their weight is one of those key characteristics that represent how to transform, design, or install the pipes to reach the best function.
The ductile iron pipe manufacturing process begins with melting iron and steel in a blast furnace; to improve the strength, magnesium is added. To form a pipe shape, the molten mixture spins around through a centrifugal casting machine. Based on the final aim, lining and coating are applied, and each step undergoes a quality control check before proceeding to the next section.
This article explores the ductile iron pipes’ weight based on various classes and diameter sizes and how to calculate the weight. Whether you’re an engineer, a student, or a technical manager, this guidance includes insights to ease the process.

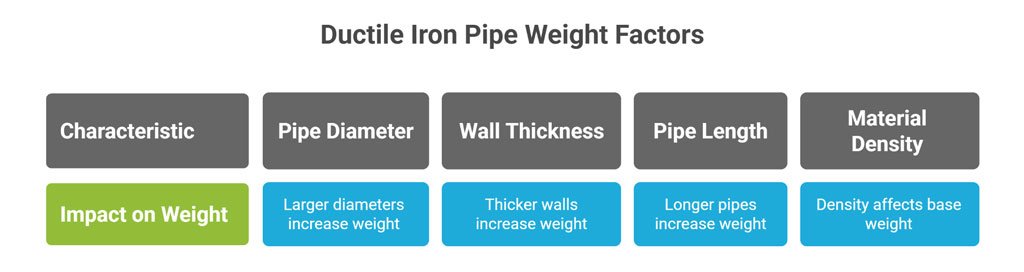

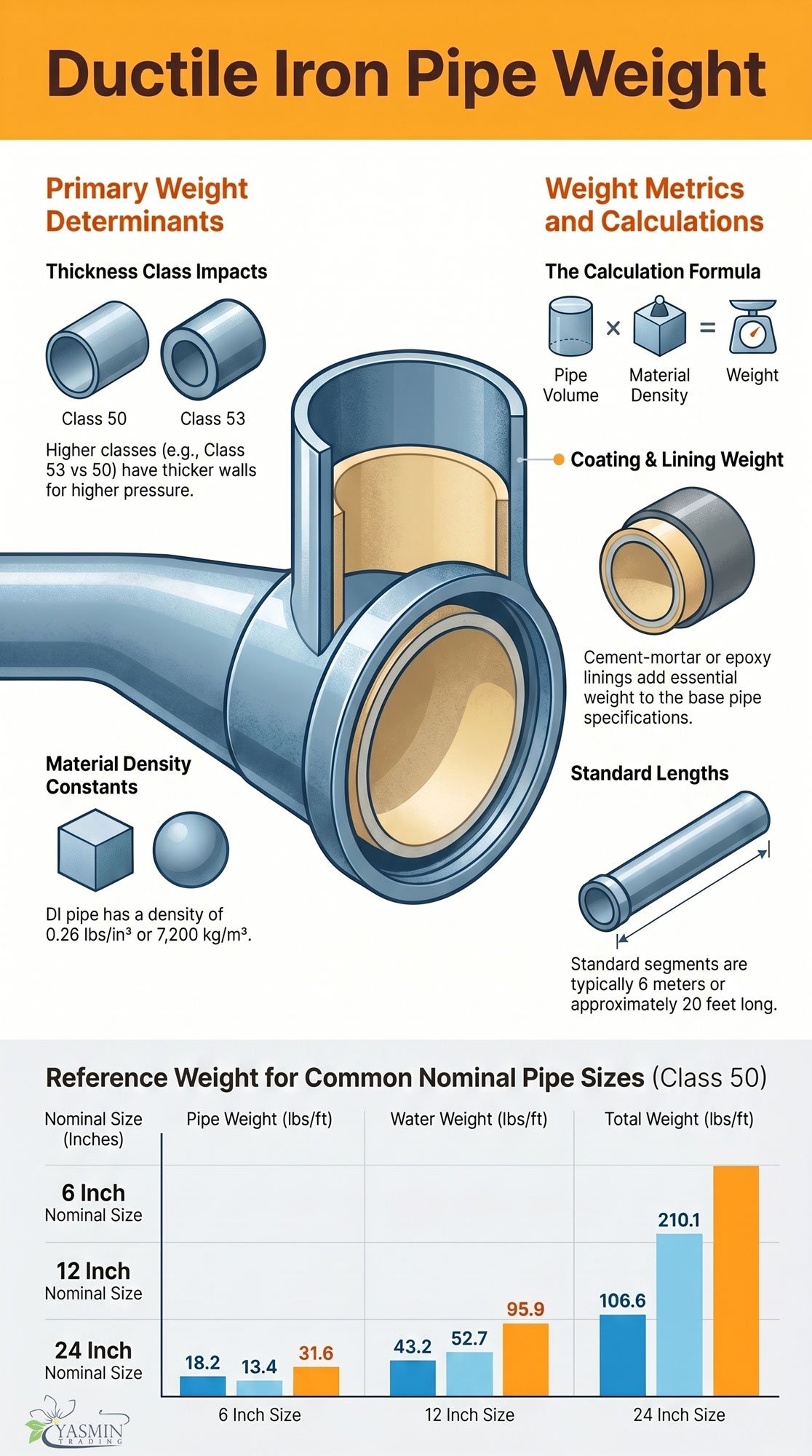

What Determines the Weight of a Ductile Iron Pipe?
There are multiple components that may impact the ductile iron pipe weight, including pipe diameter, wall thickness, length, and material density.
Pipe Diameter: The larger the diameters get, the heavier they’ll be. In fact, a 6-inch pipe weighs far less than a 54-inch pipe due to the increased volume of ductile iron.
Wall Thickness (Thickness Class): There is a common classification of ductile iron pipes based on classes (e.g., Class 50, 51, 52, 53). For high-pressure applications, thicker walls are recommended; for instance, at the same diameter, a class 53 pipe can tolerate heavier flows than a class 50 pipe. (Source: E.J. Prescott)
Length of the Pipe Segment: The usual length of ductile iron pipe is mostly 6 meters (approximately 20 feet). However, there are customized lengths with increased weight considerations.
Material Density: A ductile iron pipe has a density of almost 7.2 g/cm³, a factor depending on the pipe’s weight and indicates the base weight before coating or lining with the pipe’s dimensions.
Ductile Iron Pipe Weight Chart
Below is a table based on industrial standards for Class 50 and 51 pipes. The table’s content includes the nominal size, the water it may hold, and then the total weight per foot.
| Thickness Class | Nominal Size (Inches) | Gallons Held (Per Foot) | Pipe (Pounds Per Foot) | Water (Pounds Per Foot) | Total (Pounds Per Foot) |
|---|---|---|---|---|---|
| 51 | 3 | 0.45 | 10.1 | 3.8 | 13.9 |
| 51 | 4 | 0.70 | 12.7 | 5.9 | 18.6 |
| 50 | 6 | 1.60 | 18.2 | 13.4 | 31.6 |
| 50 | 8 | 2.86 | 25.8 | 23.9 | 49.7 |
| 50 | 10 | 4.40 | 33.9 | 36.7 | 70.6 |
| 50 | 12 | 6.32 | 43.2 | 52.7 | 95.9 |
| 50 | 14 | 8.51 | 55.1 | 71.1 | 126.2 |
| 50 | 16 | 11.14 | 64.7 | 93.0 | 157.7 |
| 50 | 18 | 14.12 | 74.5 | 117.9 | 192.4 |
| 50 | 20 | 17.45 | 84.8 | 145.7 | 230.5 |
| 50 | 24 | 25.17 | 106.6 | 210.1 | 316.7 |
| 50 | 30 | 39.10 | 139.3 | 326.4 | 465.7 |
| 50 | 36 | 56.38 | 182.6 | 470.7 | 653.3 |
| 50 | 42 | 76.46 | 229.8 | 638.3 | 868.1 |
| 50 | 48 | 100.00 | 282.7 | 834.8 | 1117.5 |
| 50 | 54 | 128.61 | 351.1 | 1072.2 | 1423.3 |
Standard Weight per Foot (U.S. Customary) vs Standard Weight per Meter (Metric)
The table above contains weights in pounds per foot (standard for U.S. applications). For instance, an 8-inch pipe weighs 25.8 pounds without water. In the metric method, the pounds per foot are converted to kilograms per meter. To give an example, a 12-inch pipe at 43.2 lbs/ft is approximately 64.3 kg/m. (U.S. Pipe)
| Nominal Size (Inches) | Pipe Weight (kg/m) | Water Weight (kg/m) | Total Weight (kg/m) |
|---|---|---|---|
| 3 | 15.0 | 5.7 | 20.7 |
| 6 | 27.1 | 19.9 | 47.0 |
| 12 | 64.3 | 78.4 | 142.7 |
| 24 | 158.6 | 312.6 | 471.2 |
| 36 | 271.7 | 700.4 | 972.1 |
| 54 | 522.4 | 1595.4 | 2117.8 |
Comparison by Diameter and Class
The weight of ductile iron pipe increases by adding to both diameter size and wall thickness in a way by choosing the same diameter size and two different Classes; the thicker one weighs heavier than the other one.
How to Calculate Ductile Iron Pipe Weight
The calculation process of ductile iron pipe’s weight is essentially needed for civil engineers, construction professionals, and procurement managers to achieve the best transportation and installation.
Here are formula-based calculation methods and a step-by-step guide to calculate the weight of ductile iron pipe.
Formula-Based Calculation Method
There is a basic formula for the weight of ductile iron pipe:
Where the volume refers to the difference between the outer and inner cylindrical volumes (OD & ID), and density is a constant value for ductile iron pipe.
Where OD is the outer diameter and ID is the inner diameter (calculation: ). The length refers to pipe length, whether in feet or meters.
Density of Ductile Iron
Ductile iron pipe contains a density of 0.26 lbs/in³ (U.S. customary) or 7200 kg/m³ (metric). Due to the nodular graphite structure, ductile iron pipe has a lower density than iron cast pipe to develop strength and flexibility.

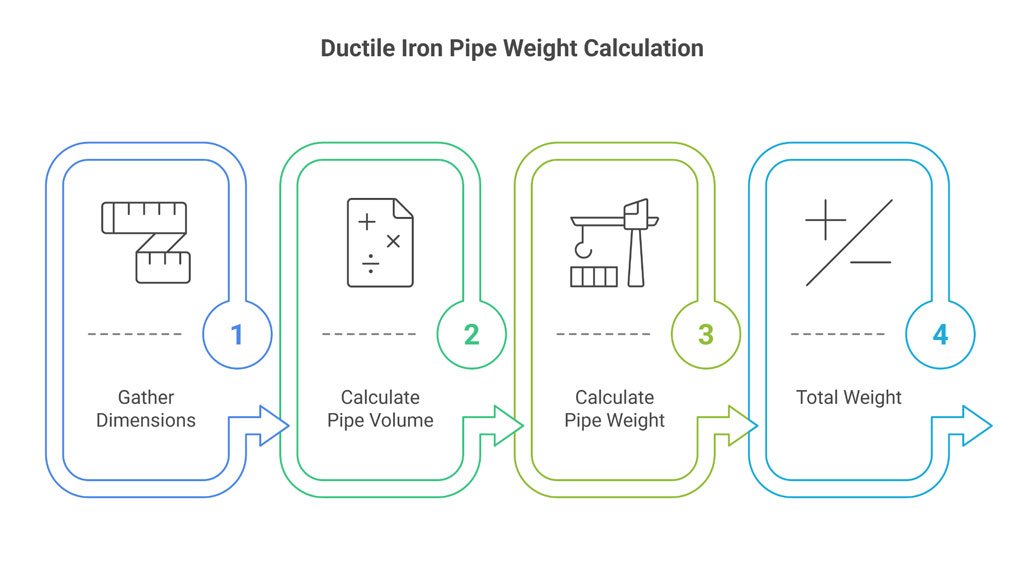

Ductile Iron Pipe’s Weight Example Calculation Step-by-Step
To lighten the way of calculation, let’s give an example of a 12-inch nominal diameter Class 50 ductile iron pipe (length: 20 feet).
1. Gather dimensions
- Nominal Size: 12 inches.
- Outer Diameter (OD):20 inches (simply find from tables).
- Wall Thickness:31 inches (Class 50).
- Inner Diameter (ID): 20-2×0.31=12.58 inches.
- Length: 20 feet (240 inches).
- Density:26 lbs/in³ (ductile iron), 0.0866 lbs/in³ (cement-mortar lining).

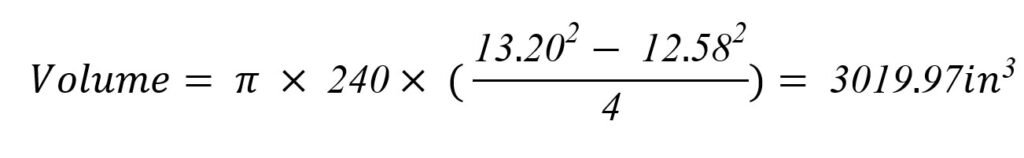

2. Calculate Pipe Volume
3. Calculate Pipe Weight
4. Total Weight
Ductile Iron Pipe Weight Calculator Tools
As we emphasized the necessity of the weight of ductile iron pipe for engineers, managers, and professionals, there are several online weight calculator tools that can calculate accurately and quickly. Here are some practical ones:
- DIPRA Calculators
- McWane Pocket Engineer Tonnage Calculator
- Certified Calculator: Ductile Iron Pipe Weight Calculator
- Engineering Toolbox Pipe Weight Calculator
How to Use Them Accurately
By passing a 5-level process, you’ll achieve the most accurate result for calculation:
- Gather precise input data (such as diameter, wall thickness, length, and density)
- Select the appropriate tool based on your preferences
- Consider Linings and Coating, even water weight (if applicable)
- Check for unit verification and consistency for each parameter
- Comparing calculator results with manufacturer weight charts
Pros and Cons of Manual vs. Calculator Methods
After all, manual or calculator, which one is better? Let’s figure it out through a comparison table:
| Aspect | Manual Calculations | Calculator Methods |
|---|---|---|
| Speed | Slow, requires multiple steps | Fast, instant results |
| Accuracy | Prone to human error | High, if inputs are correct |
| Ease of Use | Requires technical knowledge | User-friendly, minimal expertise needed |
| Flexibility | Highly customizable for unique cases | Limited to standard pipes and inputs |
| Accessibility | No internet or tools needed | Requires internet or specific software |
Effects of Coatings and Linings on Ductile Iron Pipe Weight
While coating or lining may improve the durability of the ductile iron pipe, they also add to its weight. Then, it should be considered to create the best planning.
Additional Weight from Cement-Mortar or Epoxy Coatings
Cement-mortar lining is typically added to water system pipes (1/8-inch thickness) for corrosion resistance, which minimizes the weight of the pipes. In contrast, epoxy coating is mainly added to sewage systems or for chemical transportation, and it increases the weight by a bit more than the linings.
How to Account for Linings in Weight Estimation
To calculate the ductile iron pipe’s weight including linings and coatings, start with the base weight, as we did at step-by-step calculation before. Next account for linings and coatings through volume and density calculation (consider surface area or volume for the coatings)
At last, sum these three numbers and use the calculator carefully to reach the exact result!
Conclusion
We’ve made it to the end of the line, from the manufacturing process of ductile iron pipe to slowly bringing the calculation in. Whether you’re an engineer, a professional, or a manager, you’ll vitally require a calculator for planning the next steps of piping design. Consider key factors like density or wall thickness in the calculation process to reach project efficiency and prosperity.
FAQs
1- What is the average weight of ductile iron pipes by size?
The weight of ductile iron pipe depends on parameters like diameter size or wall thickness. For instance, a 12-inch Class 50 pipe weighs around 43.2 lbs/ft.
2- How does weight differ by pressure or thickness class?
The higher the thickness class gets, the better the pipe acts under high-pressure applications. For example, a Class 56 pipe weighs ~47 lbs/ft vs. 43.2 lbs/ft for Class 50 with the same diameter size.
3- Are lining weights usually included in the specs?
Cement linings are often included, but external coatings (such as zinc and polyethylene) may require separate calculations. Always verify with manufacturer data.
