GRE Pipe Advantages and Disadvantages: Why GRE Beats Steel

Have you ever wondered what pipe type replaced traditional metal pipes in oil and gas pipelines? Studies show GRE pipes, as a kind of FRE pipes, can take place where flexible and thermally stable materials are required. GRE pipes are made of glass fibers and epoxy resin that last for decades with minimal maintenance. They’re popularly used in industrial, marine, or oil and gas applications due to their magnificent characteristics that benefit engineers in further planning.

In this post, we’ll break down GRE pipe advantages and disadvantages through its specifications and use cases, including where you’re not allowed to use GRE pipes.

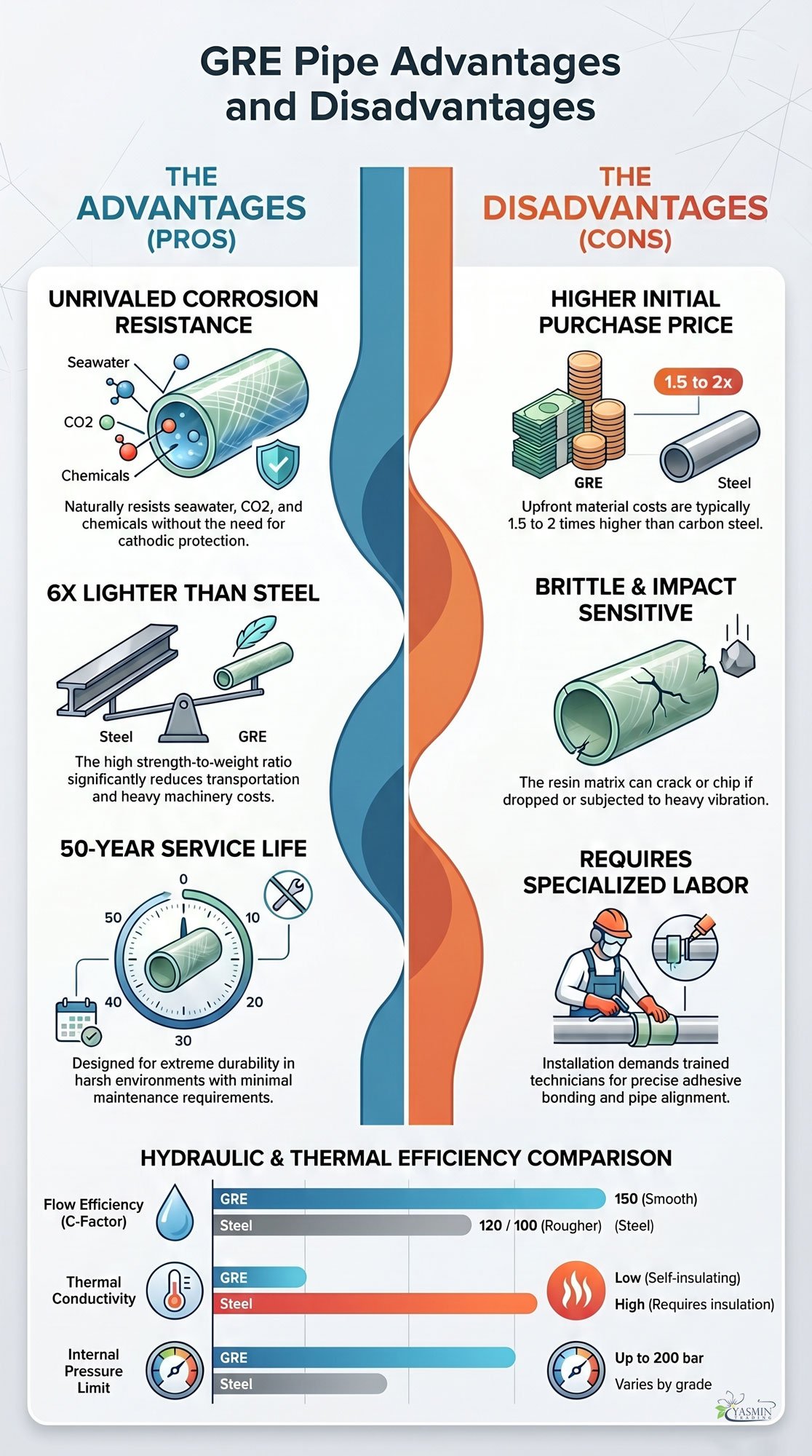

Before going through a full explanation of GRE pipes benefits and challenges, let’s review it at a glance via the table below:

Aspect	Advantages	Disadvantages
Corrosion	Excellent resistance to seawater, CO₂, and chemicals	Can degrade under long UV exposure
Strength	High hoop & axial strength	Brittle under strong impact
Weight	6× lighter than steel	Needs careful alignment during joints
Flow Efficiency	Smooth inner surface reduces friction	Misalignment can affect flow
Thermal	Low heat loss, no insulation needed	Not ideal above 130°C
Lifespan	Over 50 years	Sensitive to rough handling
Installation	Easy, fast, fewer supports	Requires trained technicians
Maintenance	Minimal, no coating or lining	Damage inspection harder
Safety & Environment	Non-toxic, UV-resistant, conductive variants available	Not recyclable after use
Cost	Low lifecycle cost	Higher initial purchase price

GRE Pipe Advantages: How Resin Type Changes the Game in Various Conditions

GRE pipes outperform traditional pipes like steel or concrete due to their outstanding specifications, such as corrosion resistance, lightweight, and thermal stability. Let’s break these benefits into pieces.

Corrosion Resistance Roots in the Plastic Nature of GRE Pipe

One of the most important advantages of GRE pipes over traditional alternatives comes from their perfect resistance to corrosion and chemicals in chemical processing, industrial plants, and aggressive environments.

How Does GRE Act in Different Conditions?

Aggressive Matters: According to ResearchGate, unlike carbon steel or even stainless steel, GRE pipes, when faced with seawater, CO₂, or H₂S show less degradation, pitting, or deformation.

Chemical Processing: While in chemical plants and industrial pipelines where acids and alkalis require such non-reactive pipe, GRE stands perfectly with no need for cathodic protection or extra coatings due to its exceptional resin type.

High Strength-to-Weight Ratio That Comes from a Lightweight Plastic Base

GRE pipes changed the process of transportation and installation over steel pipes that weigh more than six times that of GRE. GRE pipes reduced labor and handling costs in both small- and large-scale projects.

Common Mistake: Cracks Are Closer to GRE Pipes!

Some may believe that GRE pipes are not that flexible or strong enough to withstand heavy loads due to their lightweight. (Source: Scribd) However, GRE pipes include both axial and hoop strength, which enables them to stand out under high external loads or internal pressure up to 200 bar.

How Do Engineers Benefit from the Lightness of GRE Pipe?

High mechanical capacity and strength-to-weight ratio of GRE pipes provide them with such well-preferred pipelines in offshore and harsh environments, where the durability and flexibility of GRE pipes surpass metal pipes.

Smooth Internal Surface and Hydraulic Efficiency: The Power to Reduce Pumping Energy Costs

The internal surface of GRE pipes is covered by epoxy resin, which makes it smooth enough to decrease the pumping energy requirement. FuturePipe highlights that with a Hazen-Williams coefficient of around 150 and low friction, GRE pipes transfer fluids more easily than their metal alternatives.

How Does GRE Smooth Inner Surface Ease the Water Transmission?

In water transport and chemical flow, GRE pipe can make pumps last longer while keeping the flow rating continuously with lesser energy.

Pipe Material	Hazen-Williams Coefficient (C)	Friction Factor	Expected Energy Loss
GRE	150	Low	Minimal
Steel (new)	120	Moderate	Moderate
Steel (aged)	100	High	Significant
Ductile Iron	110	Moderate	Moderate

Thermal Insulation Benefits, Where Epoxy Resin Shines

The low thermal conductivity of the GRE pipe is another most-heard advantage. In use cases where hot fluids are transformed, this characteristic of GRE pipe can prevent heat loss or pipe deformation (up to 130°C) with no need for external insulation layers.

Where Exactly Does It Work Perfectly?

In offshore and thermal systems, where energy management matters the most, GRE comes with controlling fluid temperature. This not only reduces waste of energy but also saves further installation costs as a wise choice.

Long Service Life Over Decades with Minimal Maintenance Cost

If pipes are placed in normal conditions, they’re expected to last for 50 years or more. Their resistance to chemicals, corrosive soil, and high-pressure flows allows them to experience long-term performance. Also, unlike metallic pipes, their high mechanical strength can remain unchanged.

That’s why GRE pipes are top choices for large-scale and sensitive projects, cooling systems, injection pipelines, and oil and gas systems. In the same installation and design, GRE pipe can last longer than metal pipes while remaining in the same hydraulic condition as on the first day.

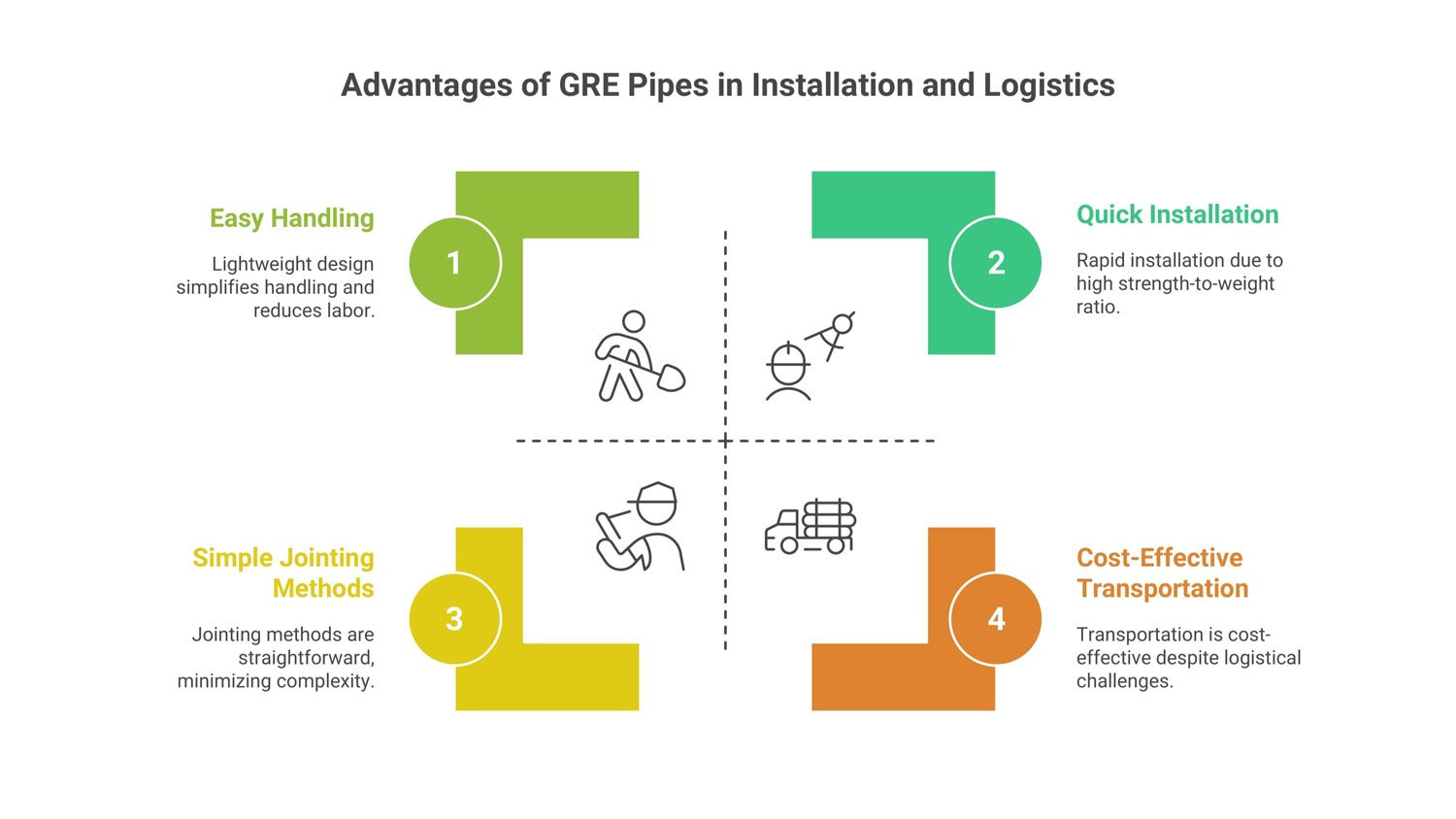

Ease of Installation, Transportation, Handling, and Storing

Due to the lightweight of GRE pipes, they are easy to handle, move, install, and fit. Also, they don’t require heavy machinery like cranes, which makes them cost-effective choices.

Compared to welding steel pipes, GRE pipes use jointing methods like key-lock or adhesive bonding that are simpler to operate. (Source: ScienceDirect)

Lastly, this property lowers the downtime and labor hours in long distances where planning for project timelines is risky. In project logistics, the high strength-to-weight ratio of GRE pipes helps them be installed more easily and quickly.

Lower Maintenance Requirements

After installation and necessary tests, GRE pipes have no need for repair if they’re well-installed and in non-aggressive conditions.

Epoxy Resin: The Unseen Hero

Due to the resin matrix used in their layers, they need no protective coating or lining. Also, in metal pipes, due to probable corrosion, periodic cleaning to remove scaling or blockages is required, which GRE pipes avoid.

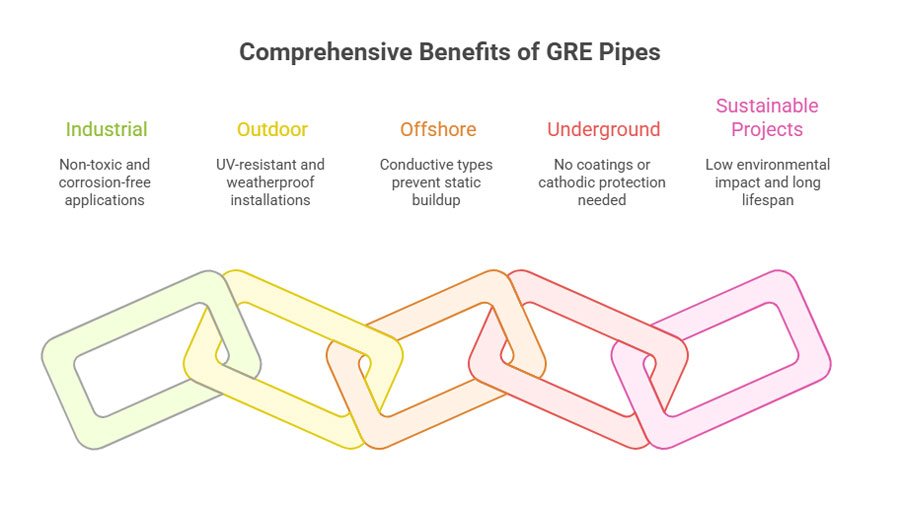

Environmental and Safety Benefits

In general, GRE pipes are known as environmentally friendly choices for piping systems. They’re non-corrosive, easy-to-install, and resistant to UV light with no extra coating.

• Industrial: Non-toxic and corrosion-free.
• Outdoor: UV-resistant and weatherproof.
• Offshore: Conductive types prevent static buildup.
• Underground: No coatings or cathodic protection needed.
• Sustainable projects: Low environmental impact and long lifespan.

GRE Pipe Disadvantages: Where Challenges Come to The Ring

GRE pipes have a lot of good things about them, but they also have some bad things that you should think about before using them for a project.  Most of these problems have to do with cost, installation, and handling, not with how well the device works once it’s installed.

• Higher Initial Cost: It costs more to buy and install GRE pipes, usually 1.5 to 2 times as much as carbon steel. This can be a problem with big projects, but the lower maintenance costs often make up for the higher costs over time.
• Brittle Resin Matrix: The epoxy used in GRE pipes is strong but not very bendable. If you drop it or hit it, it could crack or chip, so you need to be extra careful when you handle and store it. Using the right tools for lifting and packaging can help keep things safe before you use them.
• Sensitivity to Heat and Moisture: If GRE pipes aren’t made to handle high humidity or temperature, they may not work as well. Choosing the right grade and sticking to the manufacturer’s temperature limits keeps them stable over time.
• Skilled Labor Needed: GRE joints use adhesive bonding, which needs to be done with care. Workers need to learn how to use the right amount of glue, line up pipes correctly, and let the glue dry properly. Bad work can cause leaks or joints to break.
• Not Good for High-Impact Areas: GRE pipes don’t work well in places where there is a lot of mechanical stress or impacts. They should be protected or kept away from areas where hitting, dragging, or vibrating happens a lot.

In short, GRE pipes work very well when they are installed and used correctly, but these practical problems can be avoided with the proper knowledge and planning.

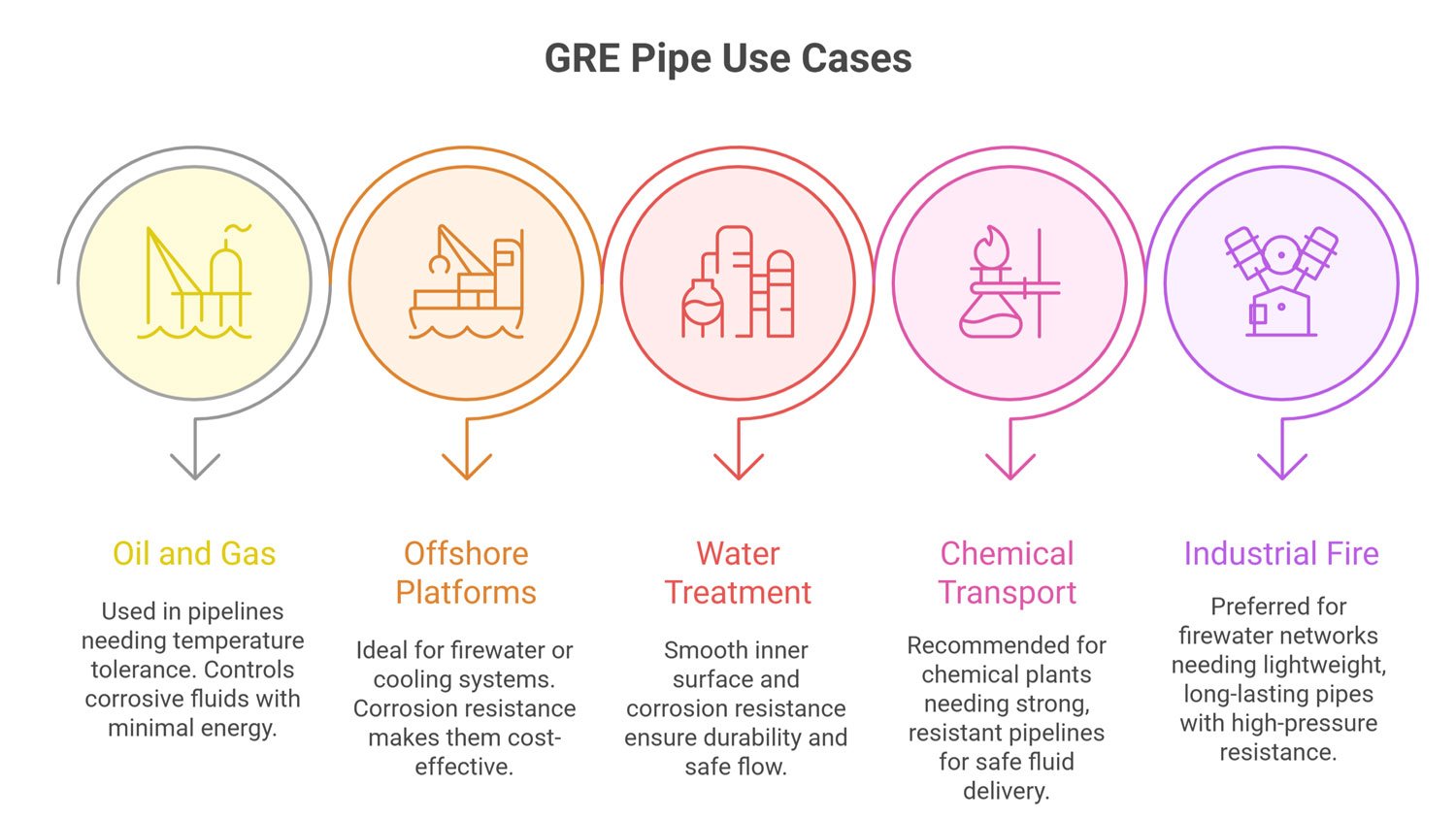

Use Cases Where GRE Pipes Outstand

As we’ve discussed before, GRE pipes are widely used in several industries due to the excellence of their specifications. Here are the most-used use cases across sectors:

1.      Oil and Gas Pipelines

GRE pipes can be used in oil and gas pipelines where a high tolerance of temperature changes is required. They can control corrosive fluid flows over pipelines with the least pumping energy requirement.

2.      Offshore Platforms

GRE pipes are perfect choices for offshore plants like firewater systems or cooling systems. At the same time, their corrosion resistance and lightweight make for an ideal opportunity for those seeking cost-effective pipes in harsh environments like marine systems.

3.      Desalination and Wastewater Treatment

The GRE pipe includes a smooth inner surface and a corrosion-resistant outer layer that ensures durability and safe flow for decades.

4.      Chemical Transport Systems

In chemical processing plants that need strong and resistant pipelines, GRE pipes are highly recommended due to their safe delivery of fluids with no leaks.

5.      Industrial Fire Systems

In firewater networks where lightweight and long lifespan pipelines should be chosen, engineers mainly prefer GRE pipes with their excellent resistance under high pressures.

When not to use GRE pipes

While GRE pipes can surpass their alternatives easily, there might be some applications where GRE pipe selection isn’t the best idea. Check out the table below for three central places where GRE pipes are not recommended:

Condition	Reason for Limitation	Recommended Alternative
High-Impact Areas	The resin matrix can crack under sudden impact from tools, machinery, or traffic.	Use steel or ductile iron with impact protection.
Extreme Temperature & Humidity	GRE loses strength and stiffness under very high heat or uncontrolled moisture beyond design limits.	Use metallic alloys or high-temp composite grades.
Frequent Mechanical Shocks	Continuous vibration or mechanical shock may cause fatigue and micro-cracks.	Use steel pipes with vibration dampers or reinforced supports.

• Technical Point: As noted in NIH, GRE pipes can crack under impacts above 25 J and lose strength by about 25 % when exposed to 120 °C+ or 90 % humidity. Use extra protection or switch to steel in such conditions.

Conclusion

As we saw, GRE pipes include several advantages that are worth mentioning, such as good corrosion resistance and a smooth internal surface that eases the flow rate. They require careful handling and transportation, skilled workers, and controlled conditions. After the installation process, they’ll last for over 50 years with low maintenance needs, which makes them perfect for various use cases.

FAQs

1- What are GRE pipes made of?

GRE pipes are made of glass fibers and epoxy resin that last for decades with minimal maintenance.

2- How long do GRE pipes last?

If pipes are placed in normal conditions, they’re expected to last for 50 years or more.

3- What makes GRE pipes corrosion-resistant?

Unlike carbon steel or even stainless steel, GRE pipes, when faced with seawater, CO₂, or H₂S, show less degradation, pitting, or deformation.
