GRE Pipe Joint Types and Methods: Finding the Best Option

Do you ever look for a reliable solution to GRE pipe joints? Selecting the best method, based on your project demand, is a bit problematic and requires specific data on the site’s conditions. GRE (Glass Reinforced Epoxy) pipes include several advantages for long-term performance, but the wrong jointing method can break the system.

This guide provides you with each type of GRE pipe jointing methods, standards, common mistakes, and the latest trends. To figure out how the two sections are joined, stay with us till the end!

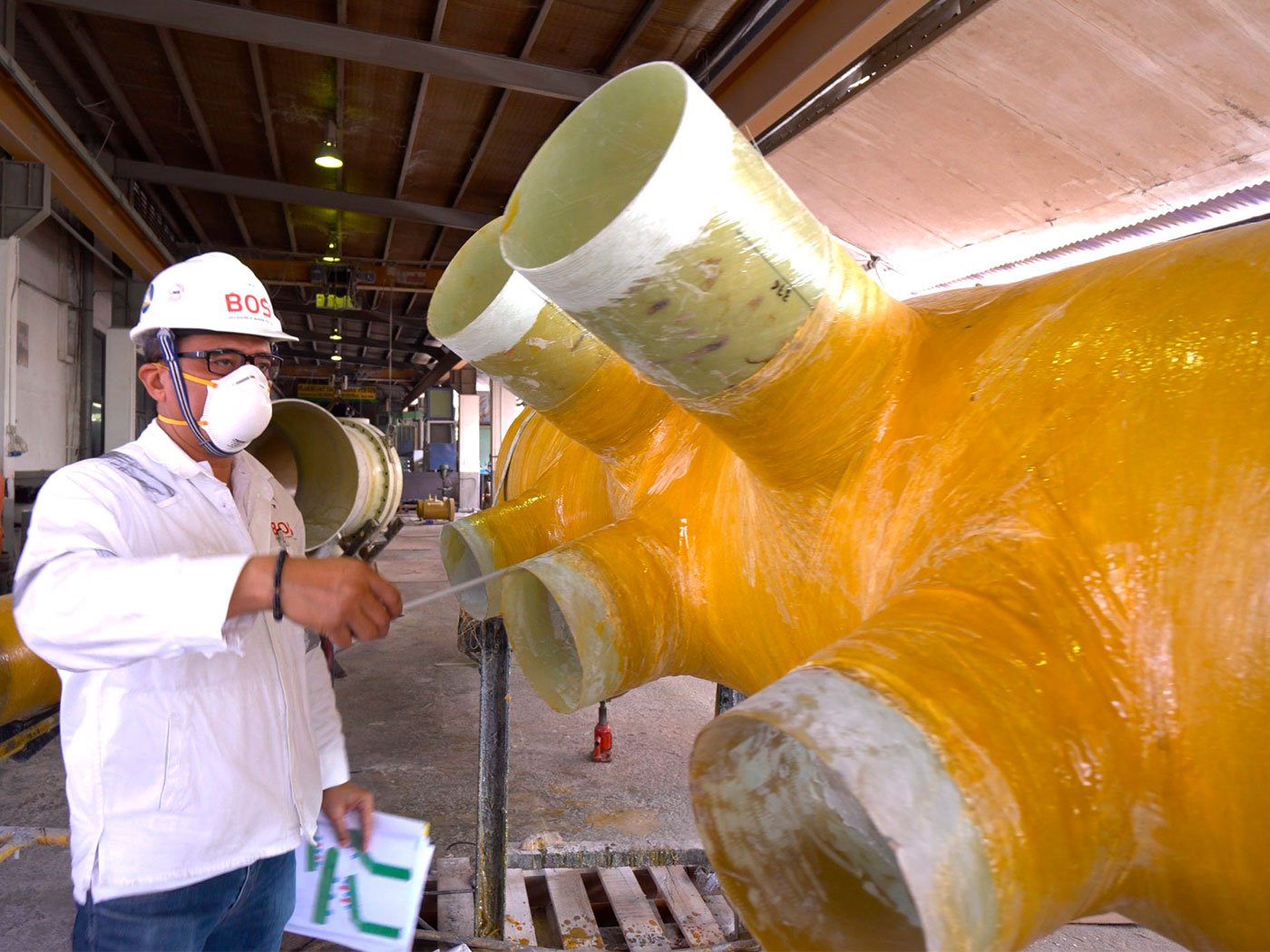

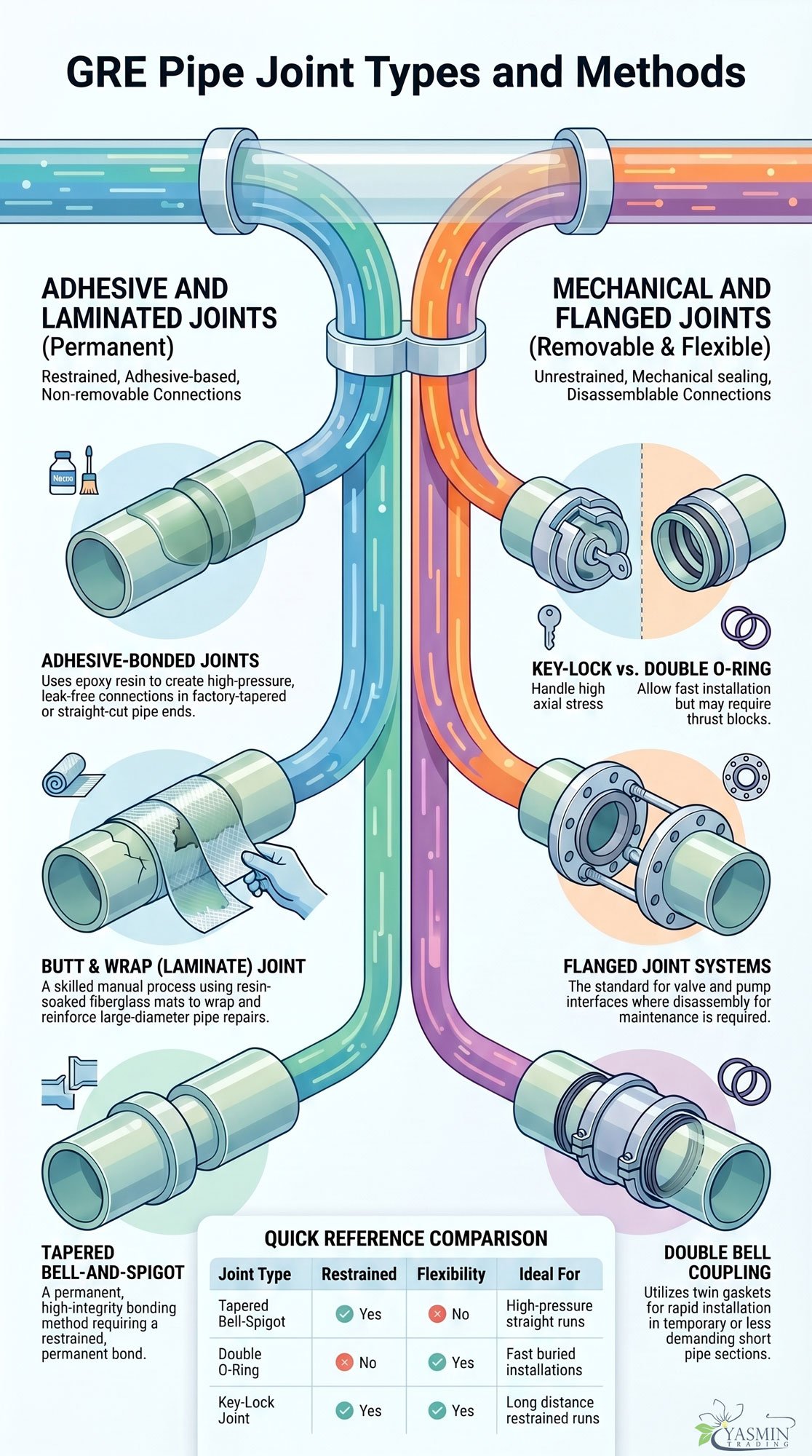

Here’s a table below to show you what GRE pipe jointing methods are and when to use each.

Joint Type	Restrained	Field Install	Flexibility	Reusable	Ideal For
Tapered Bell-Spigot (Adhesive)	✓	✓	✗	✗	High-pressure straight runs
Straight Bell-Spigot (Adhesive)	✓	✓	✗	✗	Simplified installations
Double O-Ring Bell-Spigot	✗	✓✓✓	✓	✗	Fast buried installations
O-Ring with Locking Key	✓	✓✓	✓	✓	Axial stress zones
Key-Lock Joint	✓	✓✓✓	✓	✓	Long distance restrained runs
Butt & Wrap Laminate	✓	(skilled)✗	✓	✗	Repairs, large diameters
Flanged Joint	✓	✓✓	✗	✓	Valve & pump interfaces
Double Bell Coupling	✗	✓	✓	✓	Temporary or short sections

A Complete Classification of GRE Pipe Joints

GRE pipes include several characteristics which affect the selected methods such as mechanical behavior, jointing mechanism, and reusability. Here’s a short but concise explanation of each:

How Mechanical Behavior Changes the Method

GRE pipes are classified into two main categories: unrestrained and restrained joints, each of which may handle a certain pressure.

Unrestrained joints are able to resist hoop pressure, which is basically used in conditions with minimal axial pressures. (Source: Scribd)
Restrained joints can handle both hoop and axial forces in high-pressure systems, making them perfect for many piping use cases.

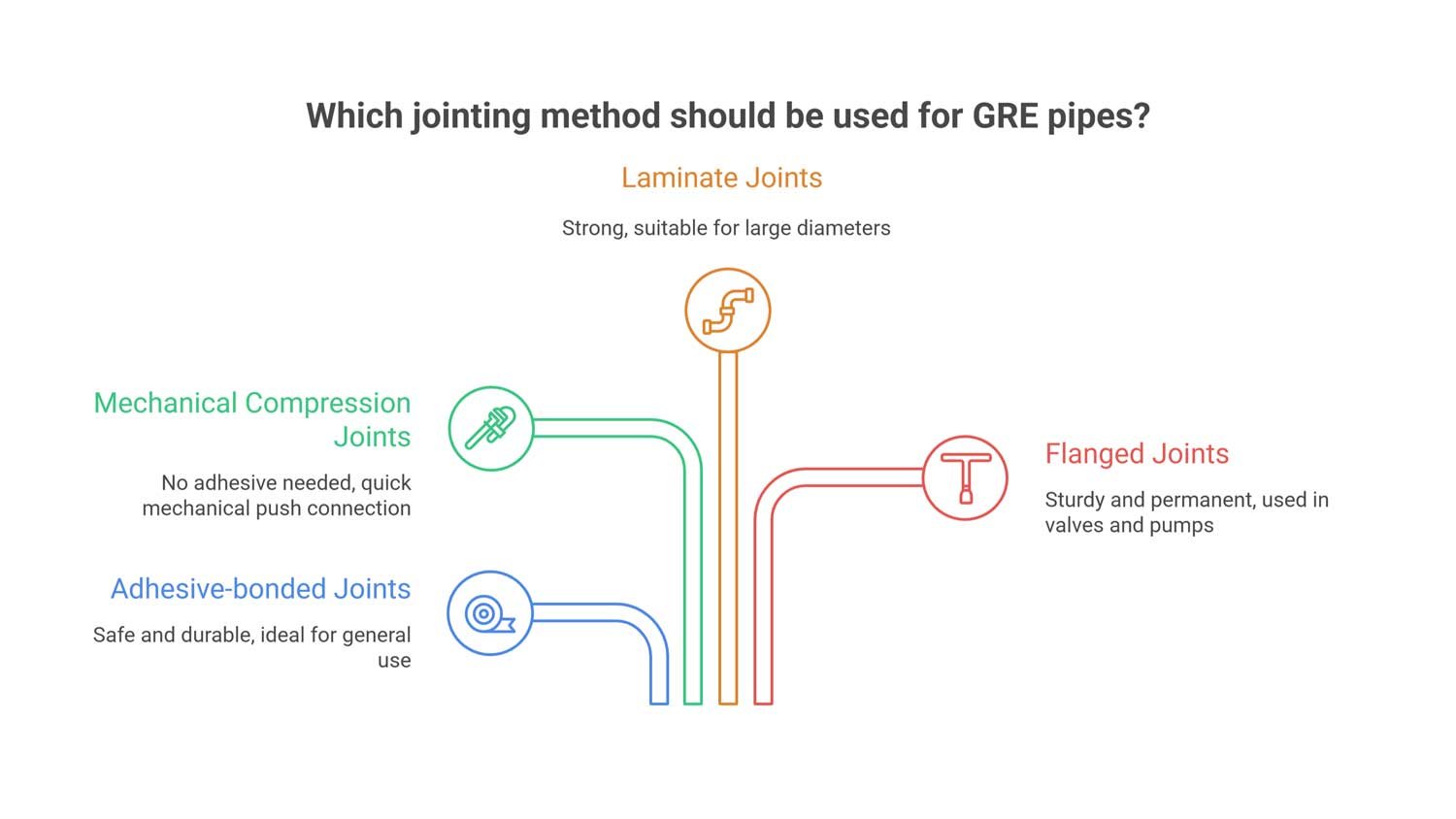

Jointing Mechanism: How Each Method Comes with a Specific Advantage?

After the axial and hoop flexibility of GRE pipes, it matters how their joints are manufactured.

Adhesive-bonded joints use adhesives as a safe and durable method
Mechanical compression or sealed joints can join with no adhesive and just by mechanical push.
Laminate (butt & wrap) joints are used in cases with large diameters to create a strong joint.
Flanged joints are used in valves and pumps where a sturdy and permanent connection is required.

The Case of Reusability and Field Conditions

The field connection can indicate what method to use, whether permanent or temporary. For instance, in fixed installations that are going to last for decades, permanent ones are the best, while disassemblable joints can ease the process of maintenance or repair in complex use cases.

Now, let’s dive into these four methods and check out if each can be used in a specific case:

Adhesive-Bonded Joint Types of GRE Pipes

This type is a safe, long-lasting method that connects two pipe sections in industrial and chemical pipelines. Adhesives like epoxy are used for this method to join pipes correctly.

1. Tapered Bell-and-Spigot Joint

The tapered Bell-and-Spigot joint is used when an easy connection is required with pre-made factory-tapered connections. (Source: ScienceDirect) This joint is mainly bonded with epoxy to make such a strong and leak-free connection in high-pressure systems.

2. Straight Bell-and-Spigot Joint

This method can be used in straightforward pipelines where high flexibility and leak-free connections are required. The straight-cut pipe ends are connected with resin (epoxy) in sites where an easy installation process is needed.

3. Taper-Taper Joint with Coupling

Couplings and epoxy adhesive are used in this type to connect two tapered pipe ends. As noted in FuturePipe, this method, high-pressure systems and axial forces push pipes to be connected more securely. Also, it can be used in use cases with high stress and operational processes.

Mechanical Joint Types of GRE Pipes

In a project where downtime matters, fast connections like mechanical joints allow engineers to plan the timeline more easily. This type mainly uses objects like O-rings or gaskets to connect two pipes for buried installations to keep them flexible.

Double O-Ring Bell and Spigot Joint

Requirements of this method contain a bell-shaped socket and a spigot with two O-rings to connect pipes. This connection has no leakage included during the GRE pipe’s long-term lifespan.

Additional Point: However, as an unrestrained method that has a quick process, it needs thrust blocks in axial pushes.

Double O-Ring Joint with Locking Key

Two O-rings are placed in this method to make the sealing between the two pipe ends. According to HYNDS Pipe Systems, key-locks in this method provide a secure connection under high pressures, while a semi-flexible connection makes it perfect for reassembling.

Key-Lock Joint (Inter Pipe / FPI Style)

FPI style includes the combination of an O-ring and a lock strip that prevents the use of thrust blocks with high axial force handling. In fast installations that require accurate positioning and layering, this method is a top choice.

Double Bell Coupling Joint

In short pipe sections where the speed of the process matters, it uses twin gaskets to create such a sturdy connection in less demanding installations.

Laminate Joint (Butt & Wrap Joint) of GRE Pipes

Laminate or butt and wrap joints are considered flexible yet fully structured connections in repairs and custom assembly cases. Via resin-wrapped reinforcement layering, this method creates a strong bond in high-pressure applications.

What exactly is a Laminated Overlay Joint?

To make this joint, fiberglass mats or roving with resin are twisted around the pipe end to increase durability. This method is popularly used where on-site changing conditions require a good adaptation of joints to different shapes.

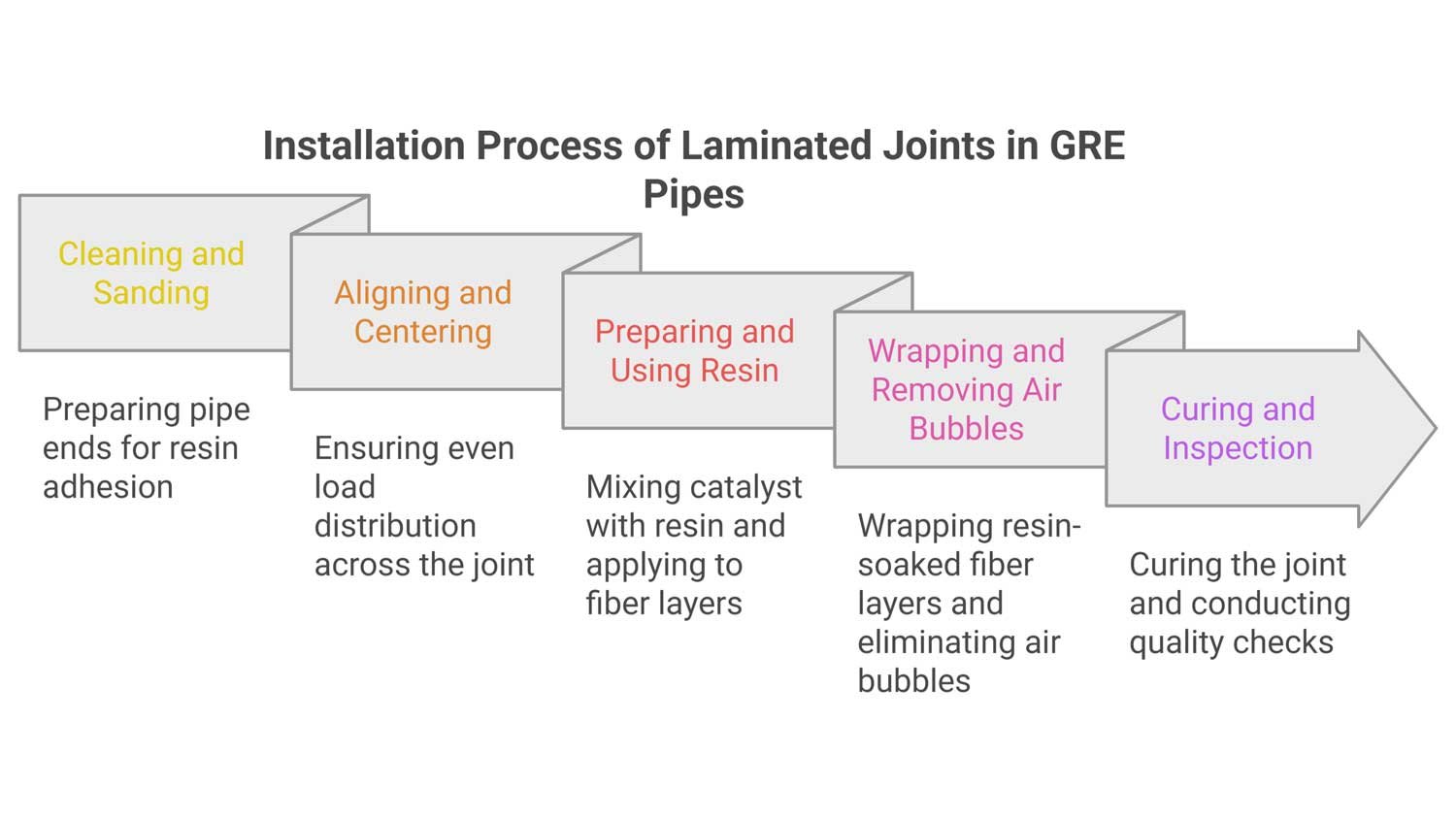

The step-by-step installation process of laminated joints in GRE pipes

The installation process of laminate joints includes several steps, as we mentioned below:

Cleaning and Sanding: The ends of the pipes are carefully sanded and cleaned to get rid of any dirt or other things that might get in the way of the resin sticking well.
Aligning and Centering: The pipes are then lined up and centered so that the load is evenly distributed across the joint.
Preparing and Using Resin: A catalyst is added to the resin and applied to the fiber layers. The resin must be fully saturated before it can be wrapped around the joint.
Wrapping and Getting Rid of Air Bubbles: The fiber layers soaked in resin are tightly wrapped around the pipe, and any air bubbles that are stuck inside are removed to keep the pipe from getting weak spots.
Curing and Inspection: The joint is finally cured, and a quality check is done to make sure it is strong and doesn’t leak.

What Materials and Tools Are Needed for the Laminate Joint Method?

Resin, catalysts, glass mats, and rollers are the primary materials. If you want to speed up the process, a heating blanket can be helpful. Alignment tools and PPE or safety gears are used for the proper assembly and further installations.

Use Cases and Necessary Considerations

Laminate joints require skilled labor and careful timeline design. They can customize the jointing sections based on the strength, though it’s time-intensive and may be chosen only in cases where standard mechanical joints can’t be used.

Flanged Joint System of GRE Pipes

Flanged joints are the top choice in disassemblable connection requirements. They’re using pumps, valves, and metal systems to be strong enough in high-pressure pipelines. Let’s figure out how this method works.

Flange-to-Flange Connections

Some matters, such as stub ends, gaskets, and backing rings, are used in this method that follow global standards like ANSI or ISO, and align with the project demand at different sites.

Sealing Types: This depends on the pressure and design of the pipeline to choose flat gaskets or O-ring grooves that aim to prevent leakage in long-term performance.

Practical Considerations for the Installation Process

To avoid probable flange damage, the torque specifications and bolt tightening sequence should be correct for a leak-free and durable connection.

On What Use Cases Do Engineers Choose Flanged Joint Systems?

In piping systems with a chance of further maintenance, repair, or disassembly. A flanged joint is recommended. This system comes with helpful pieces, such as valves and pumps, to increase the reliability and durability in high-pressure systems.

Joint Selection Criteria

The proper joint method depends on various factors such as use case conditions, operational priorities, and environmental issues.

Application conditions revolve around multiple considerations, such as pressure rate, pipe diameter, and axial load requirements, in addition to the chance of ground movements.
Operational priorities are about the assessment of downtime, ease of maintenance, and field modification requirements.
Factors like temperature, UV exposure, and chemical harmony in both underground and aboveground installations do matter as environmental issues affect the joint method.

Check the table below for more information on these criteria:

Criteria	Factors to Consider	Details	Considerations
Application Conditions	Pressure and Diameter	Joint must handle pressure and pipe size.	High-pressure systems need strong seals.
	Axial Load	Joint must resist axial forces.	Requires restrained joints.
	Ground Movement	Joint should allow movement.	Flexible joints for ground shifts.
Operational Priorities	Speed of Installation	Joint should install quickly.	Fast-install joints for urgent projects.
	Maintenance Access	Joint should be easy to maintain.	Easy access for repairs.
	Field Modifications	Joint should allow future changes.	Flexibility for adjustments.
Environmental Factors	Aboveground/Underground	Joint must fit installation location.	Aboveground needs UV resistance; underground needs moisture resistance.
	Temperature & UV Exposure	Joint must resist temperature/UV damage.	UV or heat can weaken joints.
	Chemical Compatibility	Joint must resist chemicals.	Required for harsh environments.

Standards and Compliance of GRE Pipes

The design and installation of GRE pipes and their joints must be aligned with standards, whether globally or regionally, for proper performance and safety considerations. Here are some of those most-used ones:

ISO 14692 covers the requirements for petroleum, gas, and GRP systems, focusing on the design, construction, and testing of glass-reinforced plastic pipes.

ASTM D2996 and D5685 set specifications for the materials and fabrication processes of GRP pipes, focusing on strength and durability under various conditions.

AWWA C950 and M45 establish guidelines for GRP pipes in water systems, addressing corrosion resistance and structural integrity.

API 15 HR/LR outlines the requirements for GRE pipes used in petroleum and natural gas, including testing methods for high and low-pressure applications.

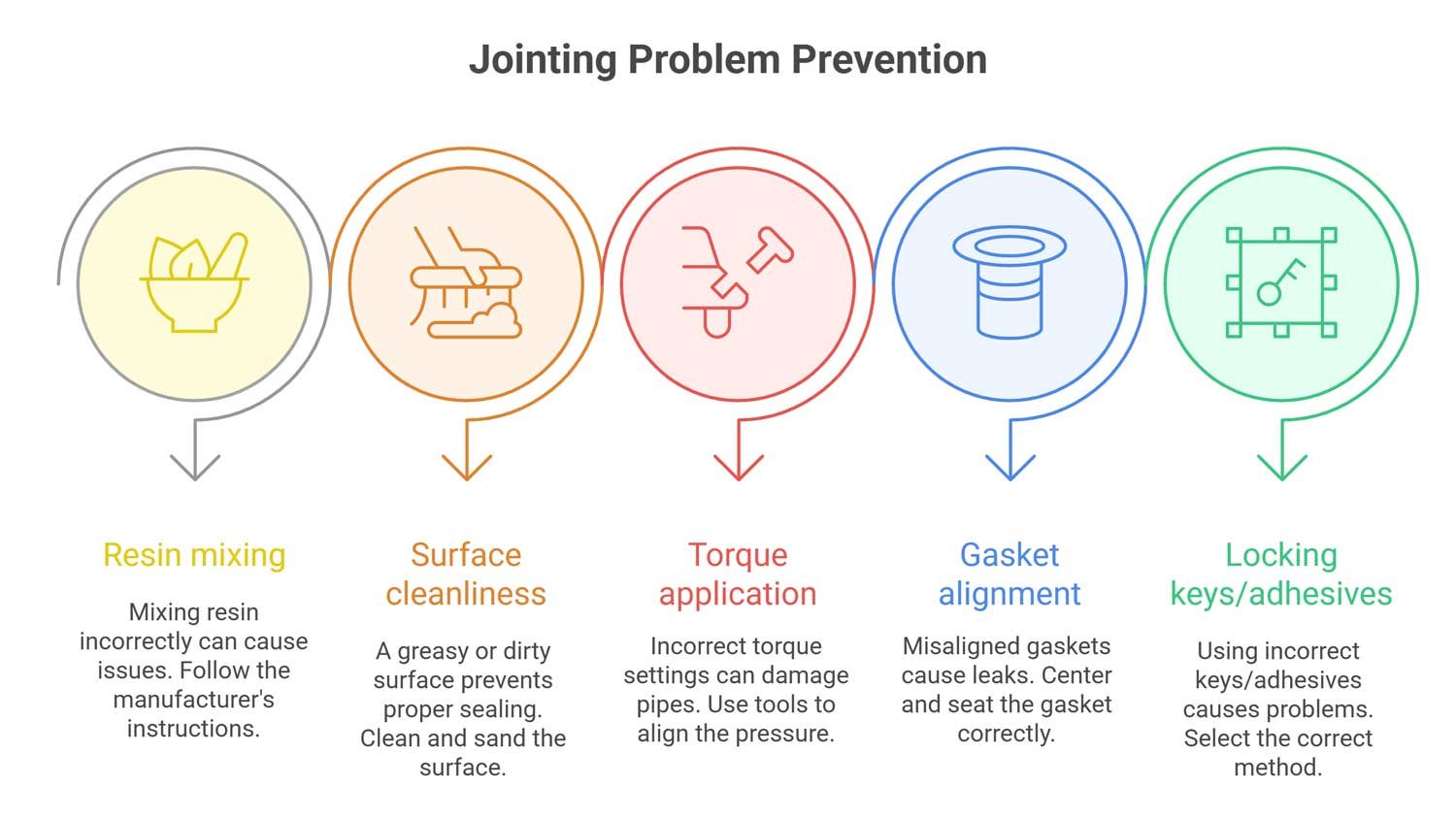

Common Jointing Mistakes and Suggestions to Prevent Probable Dilemmas

To ensure the jointing method is the proper selection and its process doesn’t fail, there are some suggestions we bring into Q&A below, check them for a reliable joint.

Are you mixing and curing the resin correctly?

Sometimes, a wrong mixture or curing process of resin can cause some scandals that can be corrected by following the manufacturer’s instructions.

Is the surface clean before joining?

If the pipe surface is greasy or dirty, the resin may not be adequately sealed. Clean and sand the surface before the process to remove any dirt there.

Are you applying the correct torque?

The correct torquing setting can prevent further pipe damage; also, there are some tools that help you to align the pressure.

Is the gasket appropriately aligned?

Misaligned gaskets can cause leaks. Check that the gasket is centered and seated correctly.

What are the right locking keys or adhesives?

Check locking keys and adhesives for the proper connection; each can cause several problems that the correct method selection can prevent.

The Future of GRE Joints: Innovations and Trends

Composite pipelines own the future of piping systems, as they are cost-efficient, durable, and resistant to harsh environments. The recent trends of GRE pipes show how they outperform other alternatives through innovative approaches.

Now Types Of Joints: Pre-Fabricated Hybrid Joints

They’re such a leader for GRE pipe joints that combine mechanical and adhesive bonding to ease the installation process and quality control in projects where lower downtime is essential.

Smart Sensor-Embedded Joints

They change the game in maintenance and controls. These sensors provide real-time data on pressure, temperature, and stress to detect any potential issues.

A New Formula That Speeds Up the Resin Curing Process

In this case, a new formula helps resin be cured faster to reduce downtime while keeping the quality, strength, and resistance in aggressive environments.

Robotic Lamination Systems

These systems helped engineers automate time-intensive processes. Also, this matter decreases the risk of human error in the jointing process, while improving the final quality.

Brand-New Material: Nano-Enhanced Adhesives

As Lyma highlights that with nanoparticles, they increase the strength, while killer bonds resist chemicals and harsh conditions.

Conclusion

GRE pipe jointing methods are various, each of which may be used in specific conditions. These methods are classified by mechanical behavior, reusability, and jointing mechanism. The proper selection can prevent probable issues like misalignment, wrong mixing, or curing, leading to failure. Lastly, there are several factors that influence joint type, such as environmental conditions and axial load in high-pressure systems.

FAQs

1- What materials and tools are needed for laminate joint methods?

2- What is the role of smart sensor-embedded joints?

Smart Sensor-Embedded Joints change the game in maintenance and controls. These sensors provide real-time data on pressure, temperature, and stress to detect any potential issues.

3- Which jointing method is suitable for fast installations?

The Double O-Ring Bell-Spigot method has no leakage during the GRE pipe’s long-term lifespan.
