What Is GRE Pipe? Benefits, Materials, and Industrial Applications

Among all composite plastic-based pipelines, selecting the best option aligned with project demands in oil and gas or marine systems where temperature tolerance matters the most, Glass Reinforced Epoxy (GRE) pipes come to the ring. These composite pipes are made from glass fibers and epoxy resin, which create a superior corrosion-resistant pipeline compared to traditional ones.

GRE pipes are such composite material used in oil and gas pipelines, where fire retardant piping systems are required. GRE pipes are mainly made of glass fibers and epoxy resin matrix to be used in high-pressure and corrosive environments. They’re top choices over traditional metal pipes due to lightweight and durability.

In this post, we’ll provide you with exhaustive information on GRE pipes, including their material, specific properties, and use cases across various industries.

Composite Piping Systems: The FRP Family And GRE, GRP, And GRV

Among the most-heard names, such as FRP, GRP, and GRE, which pipelines should be chosen for the project? The FRP family and its loyal children, GRP, GRE, and GRV pipes, surpassed traditional pipelines with their magnificent characteristics.

But What Exactly Is FRP (Fiber Reinforced Plastic)?

The terms of FRP pipe refer to fiber-reinforced plastic pipes that are mainly made from fibers like glass, carbon, and aramid, and resin types such as polyester, vinyl ester, and epoxy matrices. Engineers use them due to their lightweight and high resistance against pressure and chemicals.

What Is GRP (Glass Reinforced Plastic)?

GRP or (Glass Reinforced Plastic) pipe is a type of FRP pipe that is known for its high strength-to-weight ratio and good resistance against pressure under heavy traffic and external loads. (Source: Amiblu) Then, it’s used in marine, chemical industries, and water supply pipelines where long-term performance matters.

What Is GRE (Glass Reinforced Epoxy)?

GRE (Glass Reinforced Epoxy) is a type of GRP that uses Epoxy resin to increase specific properties like resistance against chemicals and high temperatures (up to 130°C) in oil and gas pipelines. This matter makes GRE superior to its alternatives.

What Is GRV (Glass Reinforced Vinyl Ester)?

GRV (Glass Reinforced Vinyl Ester) is a type of GRP that uses vinyl ester resin to boost the chemical resistance in harsh environments like acid or alkali transmission. Due to this brilliant characteristic, GRV pipes are the top choice in chemical processing, offshore oil rigs, and sewer systems.

Property	GRP (Glass Reinforced Plastic)	GRE (Glass Reinforced Epoxy)	GRV (Glass Reinforced Vinyl Ester)
Resin Type	Polyester Resin	Epoxy Resin	Vinyl Ester Resin
Corrosion Resistance	Good	Excellent	Excellent
Temperature Resistance	Up to 70-80°C	Up to 130°C	Up to 90-120°C
Chemical Resistance	Good	Excellent	Superior to GRP, but slightly lower than GRE
Strength	Moderate	High	High
Applications	Water, wastewater, marine, construction	Oil & gas, marine, chemical processing	Chemical processing, wastewater treatment, offshore
Cost	Lower	Higher	Higher than GRP but less than GRE
Durability	Good	Very High	High

Technical Point: As mentioned in ScienceDirect, the resin type in composite pipes represents their tolerance in various situations, such as corrosive, high-pressure, or temperature use cases, as vinyl ester increases the chemical resistance, while epoxy can boost thermal stability too.

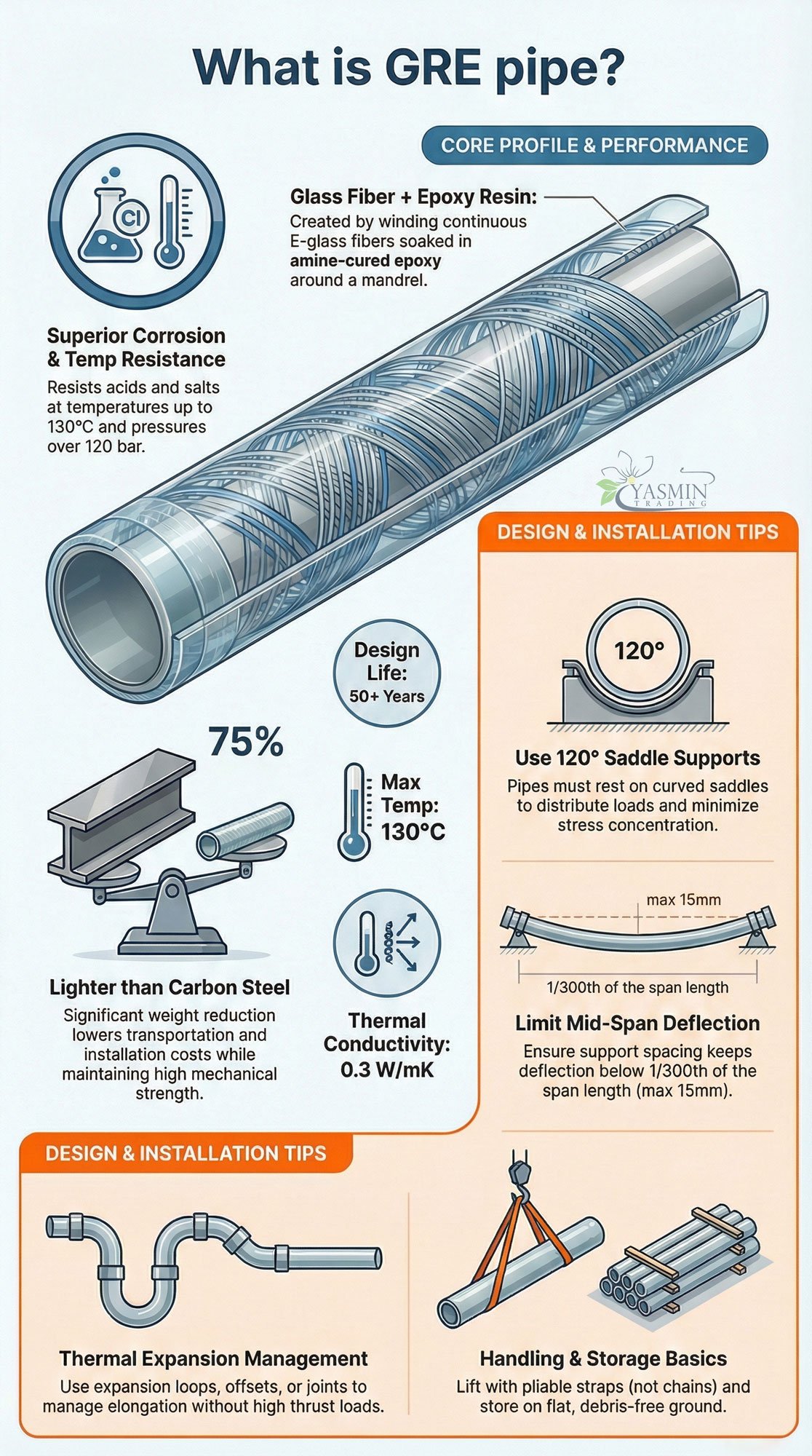

What Materials Are Used in GRE Pipe and How Are They Made?

Materials like glass fibers and epoxy resin used in GRE pipes, while increasing initial costs, make them ideal for specific sites like oil and gas rigs where thermal tolerance must be at high levels. Let’s check out the material and manufacturing process of GRE pipes.

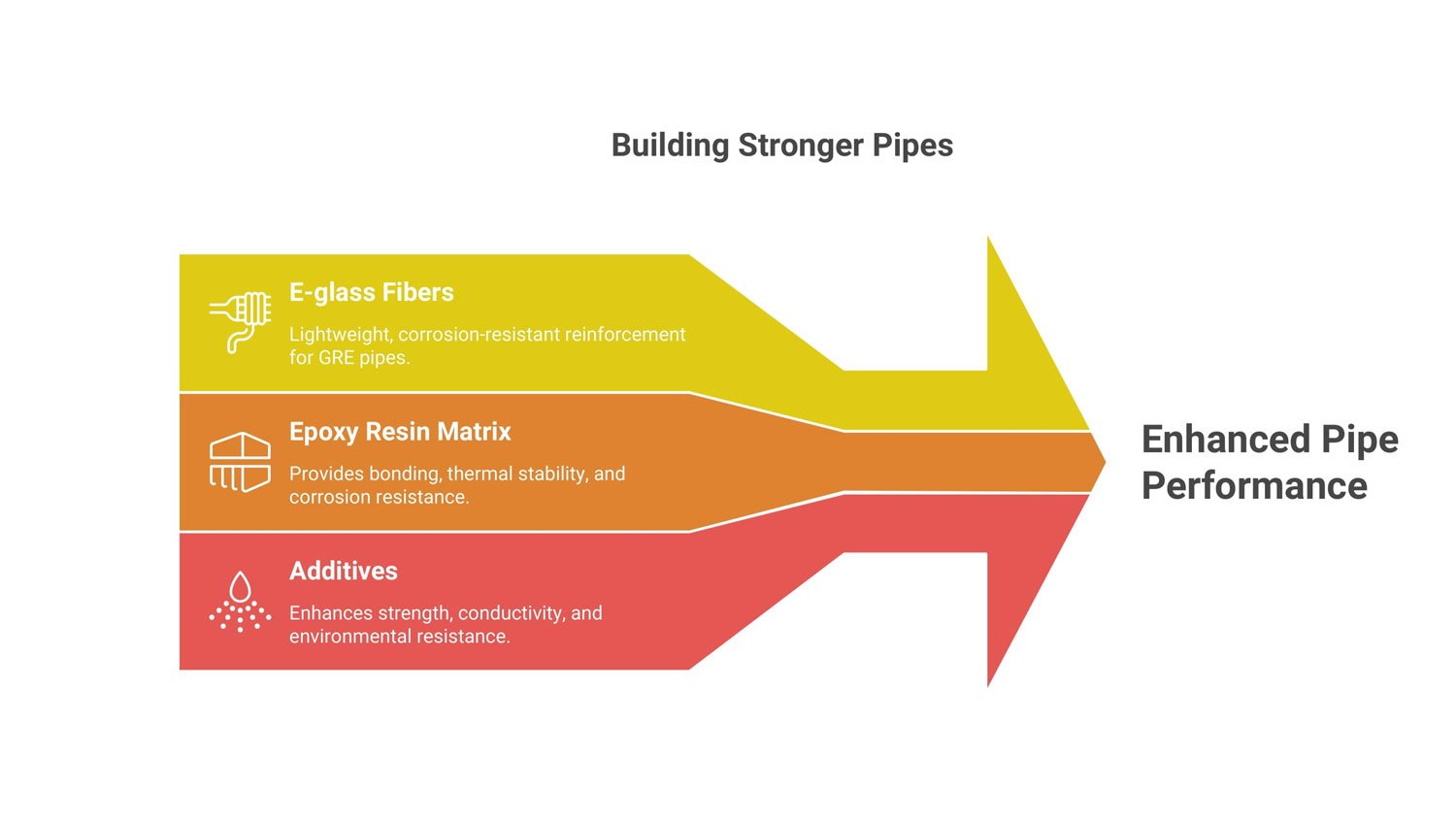

Material Used: E-Glass Fibers, Epoxy Resin, and Additives

E-glass Fibers: The first reinforcement of GRE pipes starts from this stage with these fibers. They’re lightweight yet resistant to corrosion.
Epoxy Resin Matrix: The epoxy resin is used for its bonding role, which includes high thermal stability, corrosion resistance, and mechanical strength in harsh situations like oil and gas pipelines.
Additives: Carbon or graphite is used for increasing the strength in high-pressure systems and electrically conductive use cases. While a UV-resistant coating may be added for aboveground piping systems, fire retardants can increase the tolerance in aggressive thermal conditions.

Manufacturing Process: Filament Winding Over Alternative Methods

In this method (filament winding), the continuous process of winding E-glass fibers soaked in resin around a rotating mandrel in helical patterns shapes the pipe in a consistent and strong way that lasts for decades.

Linings: To add resistance to corrosion and chemicals.
Structural layer: To balance and customize strength and durability in specific use cases.
External coatings: An extra protection for UV exposure and environmental dilemmas.
Curing and Post-Curing Process: This method involves heating pipes for drying and hardening the resin.

How To Customize Wall Thickness for Your Project Demands?

The thickness and angles of the filament winding process can be designed in a way to manage differential strength and pressure in various applications to show the most proper performance.

Mechanical, Thermal & Physical Properties of GRE Pipes

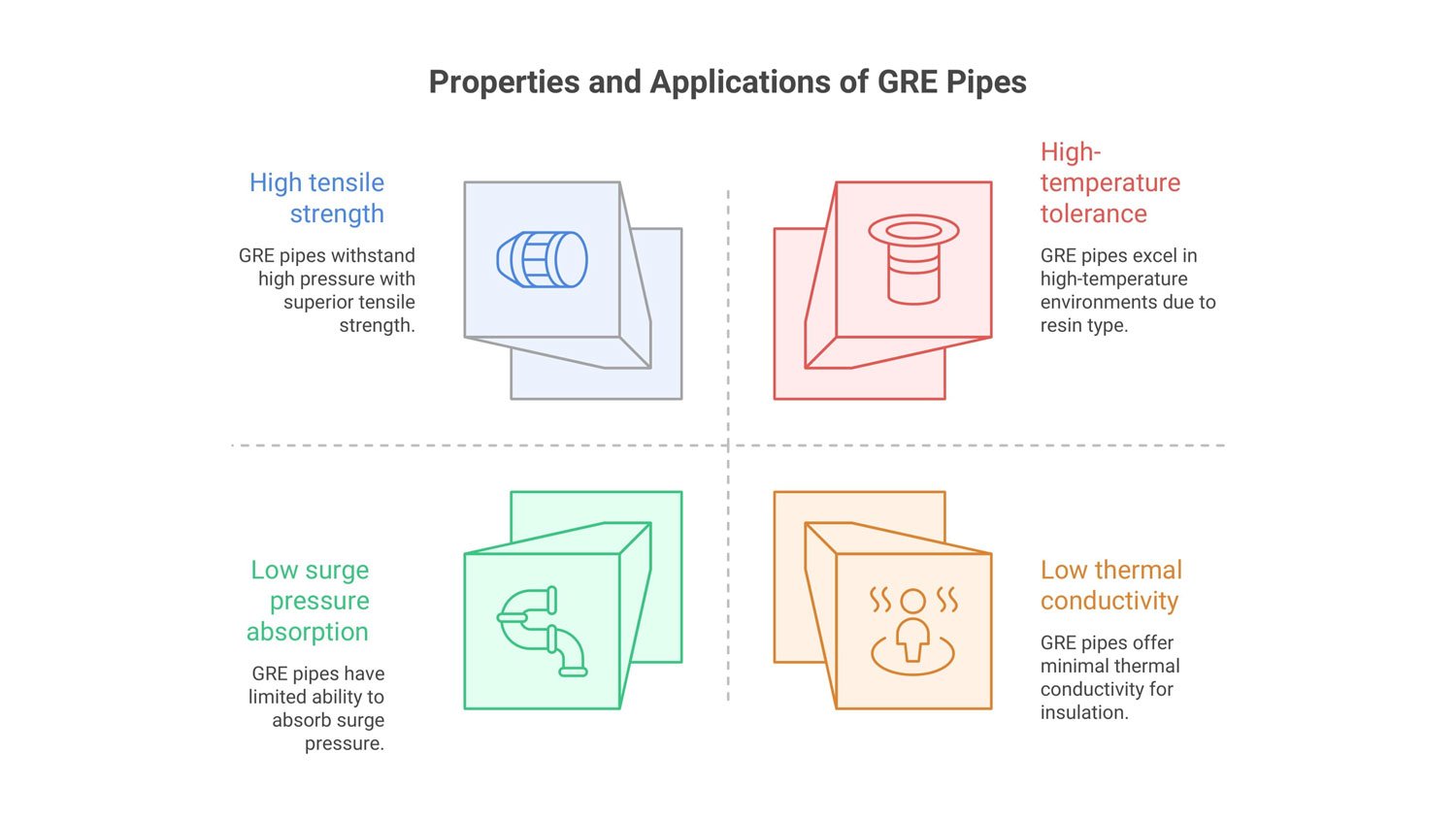

The mechanical properties of GRE pipes come from their material characteristics, as we mentioned in the last section. Now, let’s dive into their strength, thermal, and other physical characteristics.

Hoop and axial tensile strength: GRE pipes contain both high hoop and axial flexibility, which makes these pipes resistant to high length or internal pressure.

Elastic modulus and surge pressure absorption: According to What Is Piping, these properties are rooted in the mechanical design of GRE pipes in oil and gas pipelines or where high stiffness is required.

Thermal Characteristics: In thermal terms, such as high temperature tolerance range (due to the resin type used up to 130°C) or low coefficient of thermal expansion, which results in the least deformation in high temperatures.

Insulation and Conductivity Cases: GRE pipes with low thermal conductivity can be used in thermal systems or high-risk conditions.

Where do GRE Pipes shine? Other Physical Use Cases

High Barcol hardness and lightweight GRE pipe made them superior to GRP or metal in special use cases with high risk of flames, gravity, or surface damage.

How to Compare GRE and GRP Pipes?

To help understand the differences between these two pipes and reach the best selection, here’s a detailed comparison table of GRE and GRP pipes of their properties, advantages, and various use cases.

Property	GRE Pipe (Glass Reinforced Epoxy)	GRP Pipe (Glass Reinforced Plastic)
Resin Type	Epoxy Resin	Polyester Resin
Corrosion Resistance	Superior, highly resistant to chemicals	Good, but less resistant than GRE
Temperature Resistance	Up to 130°C	Up to 70-80°C
Chemical Resistance	Excellent, ideal for aggressive chemicals	Good, suitable for less harsh environments
Strength	High, ideal for high-pressure systems	Moderate, adequate for standard applications
Durability	Very High, long-lasting in harsh conditions	High, but may degrade faster in extreme environments
Applications	Oil & Gas, Marine, Chemical Processing	Water Systems, Wastewater, Marine
Cost	Higher due to advanced resin	More cost-effective
Weight	Heavier due to epoxy resin	Lighter due to polyester resin
Fire Resistance	Excellent, self-extinguishing epoxy	Moderate, less fire-resistant than GRE

Industrial & Commercial Applications of GRE Pipes

As we discussed in the last sections, GRE pipes include several specifications that make them perfect for various industrial use cases. Here are the most-used applications of GRE pipes:

Oil and Gas: In this part, GRE pipe can be used in water and chemical injection lines, flowlines, risers, and firewater piping systems. These systems mainly require such pipelines with high fire-retardant, high-pressure, and corrosion-resistant properties, and good capacity for fluid transportation.
Marine and Shipbuilding: Three central use cases, including ballast systems, inert gas pipelines, and scrubber systems, use GRE pipes due to their ballast water control, carrying gases with low risk, and resistance in harsh environments.
Industrial and Chemical Plants: Scribd highlights that to transport acids, alkalis, and other solvents, GRE pipes can be effective with their high resistance to corrosion and chemicals.
Infrastructures and Utilities: The most significant share among all use cases is for water supply systems, wastewater and sewage systems, and desalination or fire protection pipelines that mainly require long-term performance of pipes with low maintenance needs.
Electrical Systems: To design pipelines in explosive zones and grounding systems where GRE pipes can avoid dangerous failure with the least disruptions.

What Are the Most-Used Jointing and Installation Methods of GRE Pipes?

The common types of jointing in GRE pipes are adhesive bonding, which uses epoxy resin, and mechanical couplings, while anchor blocks and pipe cutting can provide a secure installation in different sites.

Types of Joints

For special jointing, adhesive-bonded joints can be such a strong and leak-free choice, while threaded joints are used due to the ease of the assembly process in low-pressure systems. Also, for a flexible yet adjustable connection, mechanical couplings are the best option.

Installation Method Tips

To secure pipe installation and avoid any probable movements, saddles and anchor blocks are used.

While proper pipe cutting and fitting can prevent leakages, or the proper support placement in sites with less space to fit pipes will stop pipe sagging or further shifts.

Aboveground GRE Design Considerations

To prevent probable dilemmas in pipe installation in above-ground cases, consider the points below:

Be careful when placing the saddle and load-bearing to control pipe weight and avoid pipe bending.
In sites where temperature changes may increase pipe movement risks, the thermal expansion consideration eases the process.
To measure how pipes with handles handle both internal and external pressure, stress analysis paves the engineer’s way.
To prevent further damage and movements, use expansion joints and fixed points.

Design & Engineering Standards and Guidelines of GRE Pipes

GRE pipes follow several global and regional standards for their material, manufacturing process, installation, and testing. Here are some of these standards, including their use cases:

ASTM Standards

These standards include materials and pressure testing of FRP pipes. For instance, D2992 is used for hydrostatic or pressure testing, while D2105 is used for the measurement of axial flexibility of pipes, and D2310 is used for keeping the consistency in GRE pipe materials. (Source: FuturePipe)

ISO, BS, AWWA, and DIN: Global Standards

These standards are adapted from ASTM standards, as each can be used for different parts of the GRE pipe specifications. ISO 10639 indicates how specifications like diameter size and jointing are in offshore and water supplies.

Moreover, AWWA M45 is a guide to design aboveground pipelines, specifically in installation and the materials used.

Marine Certifications

SOLAS, or the safety of life at sea, shows how GRE pipes should be aligned with fire safety rules, while IMO, or the International Maritime Organization, focuses on the safe performance of GRE pipes in harsh marine environments.

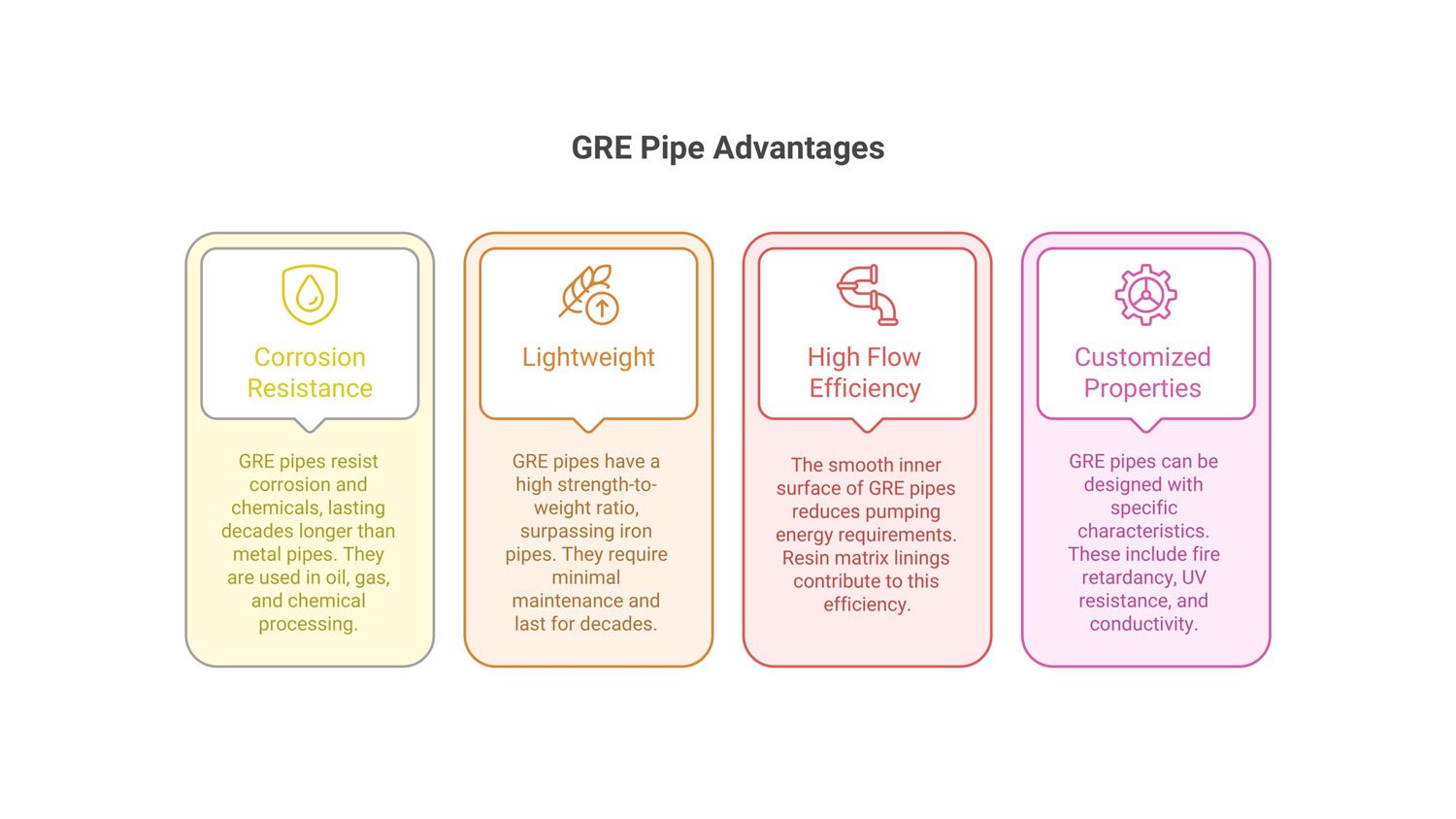

What Are the Advantages of Selecting GRE Pipes?

GRE pipes with their exceptional characteristics like lightweight, corrosion-free, and flexibility in sensitive sites can be used confidentially in several applications. Let’s pour out these advantages to figure out how perfect they are in harsh environments.

Corrosion and Chemical Resistance: GRE pipes with their resin linings can be protected for decades, unlike their traditional alternatives, such as metal pipes. Then, they’re popularly used in oil, gas, and chemical processing pipelines.

Lightweight: Another reason GRE pipes shine in piping systems is their high strength-to-weight ratio that can surpass iron pipes and last for decades with minimal maintenance needs.

High Flow Efficiency: The smooth inner surface of GRE pipes, which are commonly lined with resin matrix, makes them top choices in reducing pumping energy requirements.

Customized Properties: GRE pipes can be designed to increase each characteristic, like fire retardant, UV resistance, or conductivity, modifying both under- and above-ground pipelines.

Limitations & Challenges of GRE Pipes

As we’ve seen how GRE pipe can benefit contractors in costs and further maintenance requirements, they may include some troubles that are worth mentioning:

Higher Initial Costs: GRE pipes compared with steel pipes have higher initial costs, but due to their longer lifespan, they’re still a more rational choice.
Skilled Workers Requirements: Due to their complicated and professional installation and jointing methods, they need skilled labor, which increases both costs and the hardship of finding the workers.
Sturdy Structural Specifications: GRE pipes with their long-lasting performance contain a rigid design that limits flexibility in difficult and hard-to-access installations.

Despite all these challenges, GRE pipes are still perfect for many industrial use cases that require strong and durable pipelines.

Maintenance, Inspection & Repair of GRE Pipes

GRE pipes resist under high pressure, heavy traffic, and corrosive conditions, though they may need some periodical inspection or repairing to last for decades without leaking.

Routine Inspections

GRE pipes should be inspected for earlier prevention of deformation, leakage, and cracks. This inspection includes joints, fittings, and supports to find any probable issues.

Regular Failure Reasons

Improper jointing method selected can cause some scandals, such as misalignment or leakage, after a while the pipe is used. Also, wear and tear of environmental causes may include some problems, but not as many as the other ones.

Repair Techniques

In GRE pipes that include epoxy resin, pave the way for repairing cracks or leaks with epoxy wraps. Furthermore, GRE pipes can be maintained by adding sleeve reinforcement to increase strength in weaker sections. Both methods are cost-effective but used for temporary use cases.

Long-Term Tracking and Labeling

In this case, GRE pipes require a labeling system that can be tracked over the years to control the safety and proper performance of each section.

When to Choose GRE Over Other Alternatives (GRP or Steel)

Choose GRE pipes over steel where corrosive conditions force engineers to select the most resistant pipeline with superior weight showing off in installation, transportation, and further maintenance requirements.

As GRE and GRP pipes are both lightweight and chemically resistant pipelines, choose GRE pipe over GRP pipe when higher resistance to temperature and pressure is required.

Project-Specific Considerations: To choose GRE pipes, one should first consider some factors such as the chemical types and soil conditions, the pressure requirements, and the type of installations, whether under or above ground.
Overall Decision-Making: GRE pipes can be used perfectly for offshore, oil and gas, and water supply pipelines, where high pressure and thermal stability of GRE pipes make them the best option.

Final Wrap-Up (Epoxy Type!)

Finally, we’ve got to the last station, GRE pipes contain such high tolerance of thermal and high-pressure systems. Whether in moderate or harsh conditions, they’ll shine due to their epoxy resin coatings and linings, which specifically reduce the cost of pumping energy in fluid transmissions. Also, for sites with fire risk, GRE pipes are resistant to high temperatures and show less deformation. While they may come with some dilemmas, they’re still top choices due to durability and lower maintenance needs over decades.

FAQs

1- What are GRE pipes made of?

GRE pipes are made from glass fibers and an epoxy resin matrix to be used in high-pressure and corrosive environments.

2- Why are GRE pipes better than traditional metal pipes?

GRE pipes are top choices over traditional metal pipes due to their lightweight and durability.

3- What Are the Limitations of GRE Pipes?

GRE pipes are lightweight pipes but include higher initial costs that may come from their material. Also, they require skilled labor for both jointing and installation, which may increase costs.
