What is GRP pipe? From Design to Application – A 7-Part Technical Guide

In today’s world, polymer-based materials are such popular alternatives for previous ones. Glass Reinforced Plastic (GRP) is a compound product made of glass fibers and polymer matrix. As time goes by, the usage of GRP in the shipbuilding and pipe industry has been developed.

Moreover, due to its corrosion resistance, low environmental footprint, and low installation costs, GRP plays as a winner in sustainability efficiency of piping systems in modern industrial projects.

GRP pipes are a blend of glass fibers, with a resin matrix, and additives like silica for boosting the resistance against fire, or corrosion. Thermosetting polyester, vinyl ester, and epoxy resin are frequently used to create flexibility and capability of high pressures and destructive substances.

In this article, we’ll explore this plastic-glass world via sharing useful information around its manufacturing, different properties, applications, and standards. Follow us for a better understanding of when to use and how to install this valuable matter.

What exactly are GRP pipes?

GRP pipes are manufactured by blending glass fibers (continuous or chopped), with a resin matrix, and additives like silica or antimony oxide for boosting the resistance against fire, corrosion, or other environmental components. Thermosetting polyester, vinyl ester, and epoxy resin are frequently used to create flexibility and capability of high pressures and destructive substances.

Also, GRP performs an opposite act of metal, for instance it avoids corrosive reactions, decreases the maintenance demands and lifecycle costs, and it doesn’t need for cathodic protection.

After all, let’s find out what are the manufacturing methods of this efficient material with a comparative view in the following section:

How GRP Pipes Are Manufactured?

There are several choices to produce GRP pipes, and each of them will impact efficiency, resistance, durability, etc. Also, each may represent their properties in different usages, such as wastewater systems, industrial piping, or marine applications. Here are four common methods of GRP manufacturing:

1. Filament Winding Process: Preparation of High-Strength GRP Pipes

An automated process containing the saturation of glass fiber strands in catalyzed resin and rotating around a mandrel in two different patterns, mainly hoop or helical. The mandrel describes the pipe’s inner diameter, and the winding angle determines tensile or hoop strength as mechanical properties. The resin cures, and the pipes are eliminated from the mandrel.

Also, it’s utilized for oil and gas pipes, chemical processing, and water transforming systems. Due to its high hoop toughness, it’s a common choice for pressure ships, and rocket motor coverings.

Advantages: This method can reduce the labor cost, while providing a high automation and consistency. It also controls fiber orientation, preparing pipes for particular needs, while it’s cost-efficient and suitable for medium to high scales.

Disadvantages: The limitation of process includes high cost of primary setup (mandrel and winding equipment). Moreover, it requires alternative methods to have complex pipes and it should carefully control the resin curing process to avoid defects.

2. Centrifugal Casting: Creating Large-Diameter GRP Pipes

This method begins with adding woven glass fabric or chopped fibers into a tubular mold which has a high speed, then the liquid resin (epoxy or vinyl ester) goes into the rotating mold to achieve such a smooth resin and expelling the bubbles through centrifugal force.

Additionally, centrifugal casting is mostly used in water treatment, and wastewater systems. Due to its rotation of curing make a smooth outer and resin-rich inner side for corrosion resistance and seamless structure.

Advantages: Uniform wall thickness and high hoop strength are caused by using woven fiberglass which is used in large-diameter, corrosion resistance, and high-performance applications.

Disadvantages: The equipment used for this method is too pricey and due to less automation and flexibility, increases the labor costs and non-suitable for small-diameter shapes.

3. Hand Lay-Up: A Labor-Intensive GRP Pipe Production

It’s such a manual method that by using brushes or rollers, the layers of glass fiber are placed on a mold and combined with resin curing to demold. Metal rollers can remove air to properly wet-out.

Hand lay-up is suitable for large GRP pipes in marine applications, specific industrial piping, and wastewater systems. Due to its low tooling cost and flexibility, it is common for prototyping or repairing.

Advantages: Unlike other methods, it contains such flexibility in complex shape and length, while providing low costs, correcting errors by adding layers, and accepting on-site fabrication.

Disadvantages: This process has intensively high-cost, limited control, and inconsistent quality. Also, just one side of the pipe has a finished surface, and environmental concerns come from styrene emissions.

4. Pultrusion: Continuous Production for GRP Profiles

Pultrusion has a continuous process where the glass fiber rovings go to the resin bath for impregnation, then is heated to get shaped and cured the composite into a cross-sectional profile. Then they cut into different length, shapes to create tubes or pipes.

This method is useful for construction, electrical insulation, and renewable energy systems like wind turbines. It may be applied in ladder rails, tubes with corrosion resistance for chemical plants, and structural components.

Advantages: Due to automation and wide production range, this method is a game-changer in cost-efficiency and properties like stiffness. Also, it’s eco-friendly and sustainable while causing the least waste.

Disadvantages: Constant cross-sectional profiles limit the process, while tapered shapes are destructive, and dimensional tolerance is less than other methods. High equipment costs convert it to a non-popular choice for low-volume production.

Aspect	Filament Winding	Centrifugal Casting	Hand Lay-Up	Pultrusion
Automation Level	High (fully automated)	Moderate (semi-automated)	Low (manual)	High (fully automated)
Pipe Diameter Range	Up to 12 inches	25 mm to 356 mm	Large diameters, custom shapes	Small to medium, constant cross-sections
Strength Characteristics	High hoop and tensile strength	High longitudinal and hoop strength	Moderate, less control over fiber orientation	High tensile strength, high fiber loading
Production Volume	Medium to high	Medium	Low	High
Cost	High setup, moderate production	High equipment, moderate production	Low tooling, high labor	High setup, low production
Applications	Oil/gas pipelines, pressure vessels	Water treatment, large chemical tanks	Custom pipes, marine, prototypes	Structural profiles, electrical insulation
Environmental Impact	Moderate (styrene emissions)	Moderate (resin waste)	High (styrene emissions)	Low (minimal waste, recyclable resins)

What are the prime properties of GRP pipes?

In this competitive landscape, it does matter to stand out among various shades of industrial products. GRP pipes have a wide range of turning points compared to others which helps manufacturers choose the perfect option. Here are four shining properties of GRP pipes:

Strength-To-Weight Ratio Vs. Metals and Thermoplastics

GRP pipes show a stronger strength-to-weight ratio compared to metals and thermoplastics, have a lighter weight, and provide strength with less bulk. According to Wermac the weight of a typical pipe is nearly 30% less than the weight of steel counterparts and 12% less than concrete pipes.

On the one hand, it can reduce installation and transportation; on the other hand, it makes them ideal for large-scale projects like water transmission or industrial piping.

Chemical and corrosion resistance

Unlike steel or iron, GRP pipes are corrosive-resistant from acids, and saltwater, whether internally or externally. Their non-reactive properties make them a preferred choice for harsh information (wastewater treatment or chemical processing).

Non-Conductive or Optionally Conductive

This section refers to reducing electrical risks like power plants or can include specific applications for corrosion resistance, electrical insulation, and metal replacements. Also, conductive additives can improve operational safety and system integrity.

Low Thermal Expansion and Dimensional Stability

GRP pipes show low thermal expansion, and stability at temperature variation, then will be consistent over extreme climates, from desalination to oil pipelines and make a top choice for engineers.

Also, their ability to withstand thermal situations emphasize on reliability in dynamic systems and lower the need of repairing or adjustments.

High Surge Pressure Absorption

GRP pipes typically absorb growing pressures up to 37-40% above their specific capacity which protect systems from hydraulic problems in water or industrial pipelines. This component boosts and extends service life.

What Exactly Are GRP, GRE, GRV, and FRP? And How Are They Different?

There are various types of these polymer-based materials. Most of the differences come from the resin matrix varieties. Each may represent a specific property and application.

GRP (Glass Reinforced Plastic): In standard GRP pipes, polyester resin is used for general purposes like water systems and wastewater treatment to improve durability and lower costs.
GRE (Glass Reinforced Epoxy): The epoxy resin used in GRE pipes, can elevate temperature and pressure resistance and is perfect for industrial systems which need thermal resilience.
GRV (Glass Reinforced Vinyl Ester): In this material, the resin base is vinyl ester resin, which, due to its chemical resistance, is ideal for harsh environments like chemical plants or desalination.
FRP (Fiber Reinforced Plastic): FRP bound GRP, GRE, and GRV to perform the diversity of fiber-reinforced composites in piping and more applications.

GRP Pipes Installation and Jointing Systems

GRP pipes are available in lengths up to 12 meters, lighter than steel, and diminish the handling cost and transportation. The lightweight nature makes a good opportunity for large-scale water transmissions which require less heavy machinery or labor.

Moreover, engineers are looking for faster installation and lower operational costs, and GRP pipes are a practical choice for infrastructure.

Types of Joints

Double Bell Couplings: Rubber-sealed, push-together connections are needed for quick connections in wastewater systems.
Flanged Joints: Easily assembled pipelines for high-pressure or flexible sections, useful in industrial piping.
Adhesive Bonded: Chemically bonded and gluey joints for permanent, strong seals for chemical plants.
Threaded/Mechanical: Flexible and reusable joints for low-pressure or temporary setups. Each joint type contains reliable aspects such as pressure, fluid, and maintenance requirements.

Installation Methods

There are three central installation techniques that GRP pipes support that we’re giving a complex explanation:

Trenching: It starts with digging an enormous trench to put pipes in it; it’s perfect for water or sewage systems and supporting aspects like gravel and soft soil.
Above-Ground: In this method, pipes are placed to ease the checking and fixing of factories or plants.
Trenchless: Methods such as relining (maintenance of old pipes) or pipe installation without digging are perfect for cities and parks. Due to the lightweight and strong base of this material, it saves time, reduces disruption, and makes the installation smoother.

Key Precautions During Assembly

Now, we understood which installation method meet our demands, we’re offering you several turning points to achieve the best results:

To have the best assembling experience, take these points correctly:
To avoid stressing the connection, fitting properly, or preventing leaks, line the pipes up!
To prevent scratches or dents, handle pipes to keep them away from weakening. If you’re using glue-based joints, try not to rush or make the surface sticky.
Last, but not least, at a trenchless method, remember controlling the pressure amount to avoid unpleasant stretching pipes.

What Are the Typical Applications of GRP Pipes?

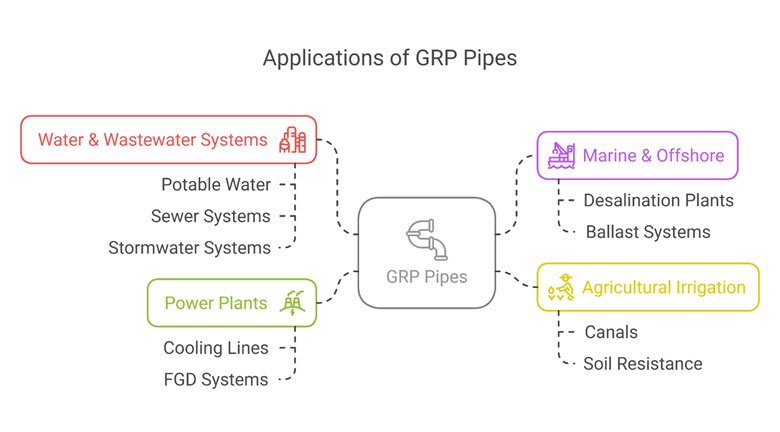

GRP pipe applications — GRP-pipe-applications

Let’s dive into whatever usage you’ve heard till now in the last sections. We’re providing you with a comprehensive review of these four essential applications of GRP pipes:

Water & Wastewater Systems

GRP pipes are mainly used for potable water, sewer, and stormwater systems due to their corrosion resistance which prevent blockage. In sewage systems, it stands out for long-life and low-cost standing against harsh chemical matters. explore long-lasting GRP Products for water projects.

Marine & Offshore

In this setting, GRP pipes are crucial for desalination plants and ballast systems, while due to their resistance to corrosion, lightweight, and durability make them perfect for marine applications.

Agricultural Irrigation

GRP pipes are ideally used to deliver water through canals. Corrosion resistance protects them from soil, while light weight may ease the installation and minimizing clogs and labor costs.

Power plants

In this part, they are perfect for cooling lines and FGD systems which low thermal expansion support temperature changing. Also, as noted in MarketsandMarkets, lightweight conditions play a fundamental role in saving time, easy installation, and costs.

GRP vs Other Pipe Materials (GRE, Steel, and PVC)

GRP vs. GRE: In GRP, polyester is a cheaper choice for general uses, and epoxy resin in GRE goes with high temperatures and pressures, like oil or gas pipelines.

GRP vs. Steel: In this case, GRP is lighter, corrosive-resistant, and lasts longer than steel, though steel has a higher tolerance against pressures.

GRP vs. PVC/HDPE: GRP has a stronger and more flexible nature than PVC OR HDPE, while is cheaper for basic uses.

Standards and Certifications

Standardization has a critical role in industrial manufacturing. Through the GRP piping production journey, you’ll meet some Standards like ISO 14692 (oil and gas), ASTM D3517 (US), and AWWA M45 (water) govern GRP pipes, which can consist of the quality of products in global classes.

There are some rates by stiffness (SN) and pressure (PN), with diameters from 25 mm to 4,000 mm, which help managers to find the best pipes for project demands.

Moreover, certifications like SHELL DEP 31.40.10.19 shares GRP pipes safety and performance standards in sectors which have a high risk.

Is GRP the Perfect Choice for Your Project?

If you’re torn about what to choose in GRP’s world, follow this part to indicate the best match for your demand.

For general use like water and sewage systems, GRP is a game changer for being cheap and corrosion resistant. Epoxy resin is more suitable for industrial use in high temperatures. Also, GRV is perfect for chemical plants which need resistance against harsh environments.

Project usage factors: as we mentioned in applications part of this article, there are multiple uses which GRP plays a game-changer role in. For instance, in water systems, marine, agriculture, and industrial projects, corrosive resistance, and strong outer base matter for a long-lasting result.

Conclusion

After all, we’ve reached the end of the GRP definition. GRP pipes, a combination of glass and resin matrix, boost corrosion resistance and durability for today’s project era. GRP manufacturing methods include filament winding, centrifugal casting, hand lay-up, and pultrusion, as well as different types (GRP, GRE, GRV). From water and wastewater systems to marine, agricultural, and power plant applications, these composite piping systems and necessary classifications show GRP pipes’ importance in this competitive market.

FAQs

1- How do GRP pipes differ from steel and PVC pipes?

GRP is lighter, corrosive-resistant and lasts longer than steel, though steel has a higher tolerance against pressures. GRP has a stronger and more flexible nature than PVC or HDPE, while is cheaper for basic uses.

2- What are the main manufacturing methods for GRP pipes?

Here are four common methods of GRP manufacturing: Filament Winding Process, Centrifugal Casting, Hand Lay-Up, and Pultrusion. Each may represent their properties in different usage such as wastewater systems, industrial piping, or marine applications.

3- When should I use GRP instead of GRE or GRV pipes?
