What Is GRV Pipe? GRVE Explained Simply
By passing the era of metallic pipes, it’s time to renovate the piping industry through composite pipes. The GRP (Glass Reinforced Plastic) family is the core of composite pipes used in various sectors, from seawaters to rural piping systems. GRV pipe, as a type of GRP, is one of the strongest choices in projects that require long-term performance and corrosion-resistant pipelines.
In this article, we discuss GRV and GRVE pipes, including their material composition, properties, manufacturing processes, and installation procedures. Stay with us till the end to find out exactly what GRV means.

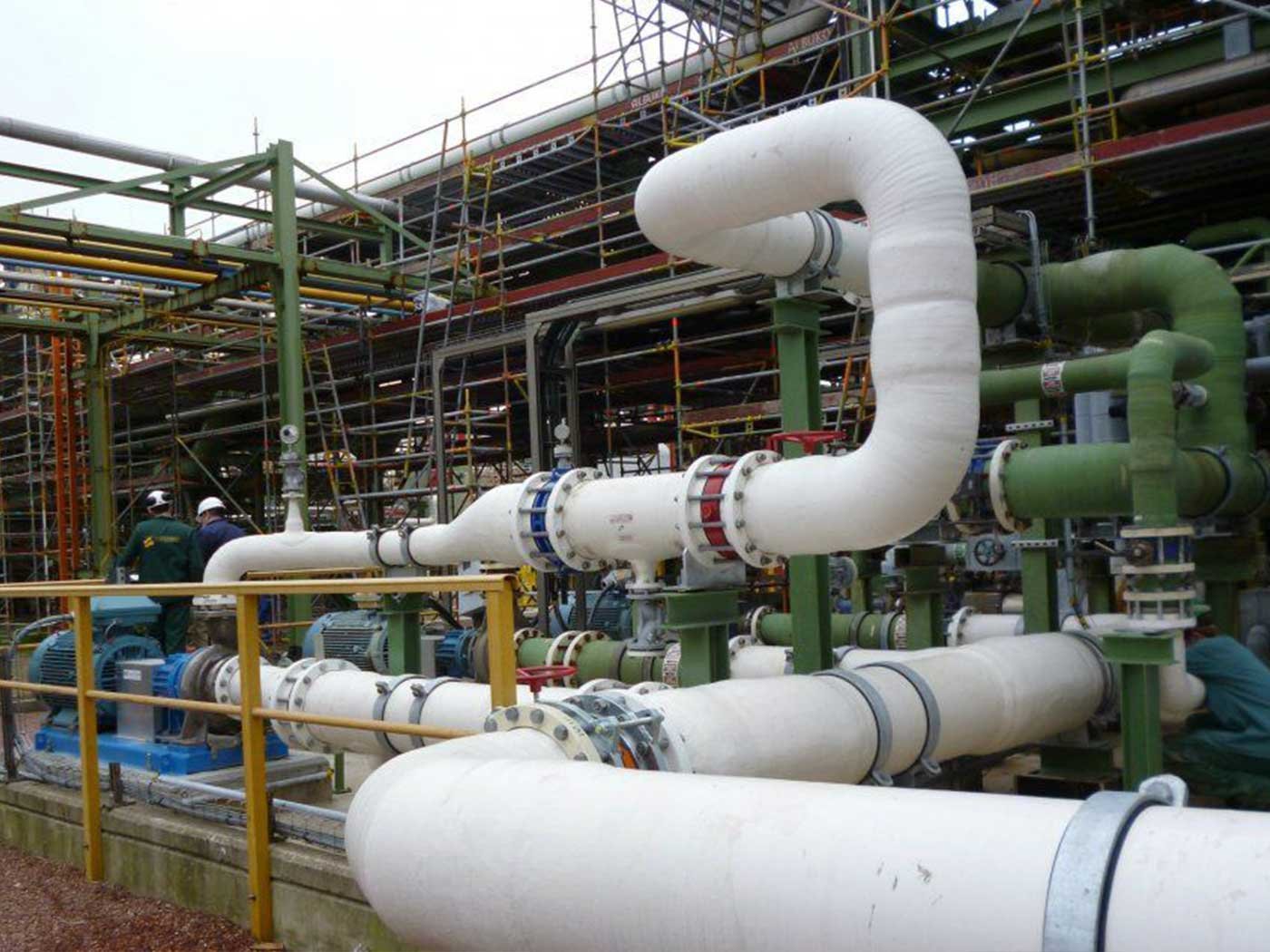

GRV and GRVE Pipes: A Definition of Glass Reinforced Vinyl Ester Pipe
GRV or GRVE refers to Glass Reinforced Vinyl Ester, a composite material made of fiberglass reinforcement and vinyl ester resin matrix that makes it resistant to corrosion and pressure in aggressive environments.
GRV vs. GRVE: What’s the Difference?
The difference between GRV (Glass Reinforced Vinyl Ester) and GRVE (Glass Reinforced Epoxy-modified Vinyl Ester) is mainly about being epoxy modified in GRVE, which shows higher resistance in aggressive soils and harsh environments where regular ones fail.
Where Exactly Are GRV Pipes Used?
These pipes are primarily used in chemical processing, desalination plants, wastewater treatment, and industrial pipelines due to better resistance to corrosion or degradation of chemicals than traditional metal pipes.
Material Composition and Structure of GRV Pipes
GRV pipes are made of glass fibers such as E-glass or ECR-glass layered in a vinyl ester resin matrix to improve strength while adding chemical resistance and heat tolerance.
Layering Construction
The pipe is made up of layers. The inner liner protects against corrosion, the structural layer is made of glass, sand, and resin for strength, and the outer resin coat protects the pipe from UV and environmental damage.
The Act of GRV Pipe Under Stress
GRV pipes are made to handle heavy loads and stress, so they stay strong even when the temperature changes. This makes them perfect for high-pressure systems and harsh conditions. (Source: ScienceDirect)
GRV vs GRP vs GRE Pipes: When to Use Each?
To choose the most reliable item for your piping project, firstly, you should consider what your main project demands are and then check each pipeline and its specifications to match specific requirements.
Please take a look at the table below to figure out how they differ and where to choose between GRP, GRE, or GRV pipes.
| Property | GRV (Glass Reinforced Vinyl Ester) | GRP (Glass Reinforced Polyester) | GRE (Glass Reinforced Epoxy) |
|---|---|---|---|
| Resin Type | Vinyl Ester Resin | Polyester Resin | Epoxy Resin |
| Max Operating Temperature | ~110°C | ~90°C | ~120°C |
| Chemical Resistance | Excellent (acids, alkalis, solvents) | Moderate (limited chemical tolerance) | Very Good (hydrocarbons, water, mild chemicals) |
| Mechanical Strength | High tensile and impact strength | Moderate | Very high and rigid |
| Main Usages | Chemical plants, desalination, wastewater, marine applications | Water supply, sewage, cooling systems | Oil & gas, industrial piping, offshore systems |
| Cost | Medium-High | Low | High |
When to Choose GRV Over GRP or GRE
- Choose GRV pipe where aggressive soil, saline conditions, or harsh environments require high resistance to chemicals and corrosion.
- Also, GRV pipes include such long-term performance under heavy loads with no cracks.
- In chemical or desalination plants where GRP may fail or GRE may be costly, GRV is the best option.
Pros and Cons of GRV: What to Consider When Choosing GRV Pipe
GRV has a good balance between price and performance; it’s stronger than GRP but cheaper than GRE. It’s the best choice when you want long-lasting service and protection from rust without spending a lot of money on epoxy systems.
Mechanical and Chemical Properties of GRV Pipes
GRV pipes are designed in a way that resists high pressure or harsh conditions. The balance of structure and composite nature of the GRV pipe made this resistance possible.
Mechanical Strength
The existence of axial and hoop tensile strength of GRV pipes created such good withstanding against pressure, whether internal or external, with no deformation. They include such SN and PN of:
- Pressure classes (PN): PN 1 to PN 32 bar
- Stiffness classes (SN): SN 2500 to SN 12500
Thermal and Dimensional Tolerance
In high-temperature use cases like oil and gas pipelines, GRV pipes include such high resistance and consistency in performance that they contain no degradation in thermal distortion cases.
- Temperature Resistance: Up to ~90 °C
- Poisson’s Ratio: Around 0.3
- Low thermal expansion shows the acceptable dimensional reliability under heavy loads and stress.
Hydraulic Efficiency
The smooth inner surface of GRV pipes comes from the resin matrix used there. This matter could effectively reduce pumping energy and decrease the friction in high flows.
Typical values:
- Hazen-Williams C ≈ 150
- Manning n ≈ 0.009
Chemical Resistance
GRV pipes are resistant to several chemicals and other substances in both seawater systems and chemical plants. Here are some examples of what they resist:
- Acids, alkalis, and salts
- Hydrocarbons and hydrogen sulfide
- Seawater and UV exposure
Overall, all these characteristics make GRV pipe such a resistant pipeline in hard-to-access sites where durability matters the most, such as wastewater treatments, desalination, and chemical piping systems.
Manufacturing Process of GRV Pipes
The manufacturing process of GRV pipes starts from the preparation of the initial material to filament winding as the central step and ends with QC and final processing. Here’s a concise explanation of this process:
Step 1: Getting Materials Ready
First, choose high-quality glass fibers and mix vinyl ester resin with specific materials and additives to protect against UV exposure or chemicals. Then, clean the fibers and bundle them for the next step.
Step 2: CNC Filament Winding
Second, ResearchGate shows how to wrap the fibers around a spinning mold by a computer-monitored machine to create the right angle (mainly like 55 degrees to improve the strength).
Step 3: Sliding the Mold
While the mold moves forward slowly, it’s possibly making long pipes up to 12 meters, like shaping a long rope out of clay.
Step 4: Soaking and Hardening
We dip the fibers in resin before wrapping them. After, we heat or use UV light to harden the resin, making the pipe challenging.
Step 5: Checking Thickness
Sensors watch the pipe’s thickness as we go, keeping it even. We also scan with sound waves to spot any flaws.
Final Step: Cutting, testing, and standards
Once hard, cut the pipes to sizes like 3, 6, or 12 meters and test them to meet global standards and guidelines such as ASTM D2996.
GRV/GRVE Pipe Dimensions and Customization Options
GRV pipe can be designed based on each project’s demands. For instance, in a project that requires long pipes, these pipes come in 12-meter lengths or less, but with a reliable joint system. Check out the table below for more customization.
| Feature | Details | Applications | Standards | Benefits |
|---|---|---|---|---|
| Diameter | 25 mm to 4000 mm | Chemical, water mains | ASTM D2996, ISO 14692 | Fits small to large projects |
| Lengths | 3 m, 6 m, 12 m | Sewer, desalination | AWWA C950, BIS 12709 | Easy transport, fewer joints |
| Customization | 5-50 mm, PN 1-32 bar, SN 2500-12500 | Tailored pressure, depth | ASTM D3517 | Meets specific needs |
| Traceability | ASTM D2996, date, batch, serial | Quality tracking | ISO 9001, NSF | Ensures reliability |
GRV Pipe Jointing Systems
GRV pipes can be connected in systems requiring long pipelines with no leaks included. Here are the most-used methods:
1. Restrained joint cases
Butt and Wrap: This method uses fiberglass to wrap and strengthen pipes ≥ 300 mm in high-pressure systems. (Source: Scribd)
2. Non-Restrained Joints
Bell & Spigot: In this method, one pipe fits into another to form a joint. Then an O-ring adds more flexibility while being excellent for the environment, reducing the risk of movement.
Double Bell Coupling: Uses a coupling with two bell ends that comes with rubber gaskets for flexibility and safety.
3. Flanged Joints
These connections are mainly used to join GRV pipe to steel or valves with bolted flanges and gaskets in specific chemical conditions.

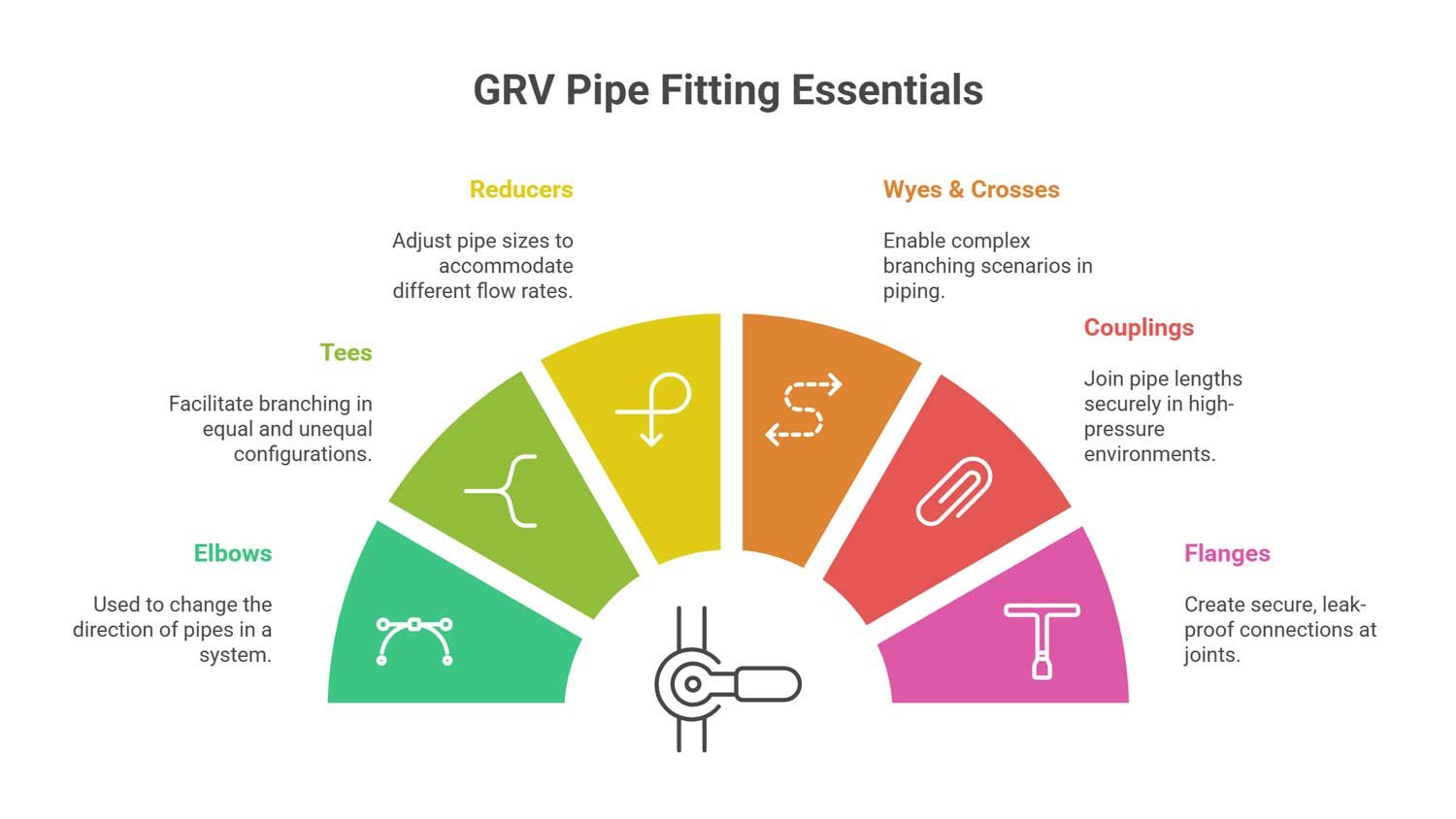

Pipe Fittings and Accessories: What Can Connect GRV Pipes?
The fittings for GRV pipes are pre-made from the same material as the pipes to make the performance longer with no leak or crack. These cases are available in:
- Elbows: Scribd notes the use of elbows in GRV to change the direction in the piping systems.
- Tees: To make branches correctly, they are used in both equal and unequal types.
- Reducers: Adjust pipe sizes in various options.
- Wyes & Crosses: Used in complicated branching cases.
- Couplings: Join pipe lengths together in high-pressure systems.
- Flanges: Such as puddle ones or blind ones, they can make such a structure in connection spots with no risk of leakage.
Attention: Special connections and fitting choices are available when requested to meet specific demands in customized pipelines to smooth the flows and reduce the need for extra energy.
Standards and Guidelines: Global and Regional Cases
GRV pipes support standards such as ASTM and ISO to be aligned for every pipeline case all around the world. Check the guidelines below for more information on GRV pipe standards.
| Category | Standard/Certification | Type | Description |
|---|---|---|---|
| Manufacturing & Design Standards | AWWA C950 | Design Standard | Standard for fiberglass pressure pipes. |
| AWWA M45 | Design Standard | Guidelines for fiberglass piping systems. | |
| ISO 14692-3 | Design Standard | Design and operation of GRP piping systems. | |
| ASTM D2996 | Material Standard | Specification for filament-wound fiberglass pipes. | |
| ASTM D3517 | Material Standard | Standard for thermosetting resin pipes. | |
| ASTM D3754 | Material Standard | Standard for glass-fiber-reinforced pipes. | |
| ASTM D4161 | Material Standard | Specification for fiberglass pressure pipes and fittings. | |
| BIS 12709:1994 | National Standard | Indian standard for composite materials. | |
| BIS 14402:1996 | National Standard | Indian standard for fiberglass pipes and fittings. | |
| Certifications | ISO 9001 | Quality Certification | Quality management certification. |
| ISO 14001 | Environmental Certification | Environmental management certification. | |
| OHSAS 18001 | Safety Certification | Health and safety management certification. | |
| WARS/Kitemark/NSF | Product Certification | Certification for potable water compliance. |
What Application Are GRV Pipes Supported?
GRV pipes are used in several industrial and urban use cases, from water systems to chemical processing and seawater intakes and offshore environments.
Water and Sewer Systems
Potable water systems require the safe transportation of drinking water, with no evidence of dirt or corrosion, through drainage and stormwater systems that control runoff from urban sites. GRV pipes can be effectively used.
Industrial Applications
In use cases like chemical processing, effluent lines, and cooling systems where chemicals are about to aggressively ruin the piping systems, GRV pipes with their resin layer are the best choice with minimal maintenance requirements.
Furthermore, in desalination plants and reverse osmosis (RO) systems, GRV pipes are the least prone to cracking.
Energy Sector
For power systems and firewater systems, when high-pressure flows should be carried on continuously, GRV pipes can transport water smoothly.
Marine and Offshore Systems
In marine and offshore use cases, GRV pipes are used for intake seawater and discharge systems in wastewater treatments with a smooth internal surface of these pipes, which stems from a resin matrix, whether the regular vinyl ester or the epoxy-modified version.
Agriculture: The Case of Irrigation Lines
In rural and urban sites, where the networks of irrigation and water transmission require pipes that resist both UV exposure and aggressive soils, GRV pipe is a top choice.

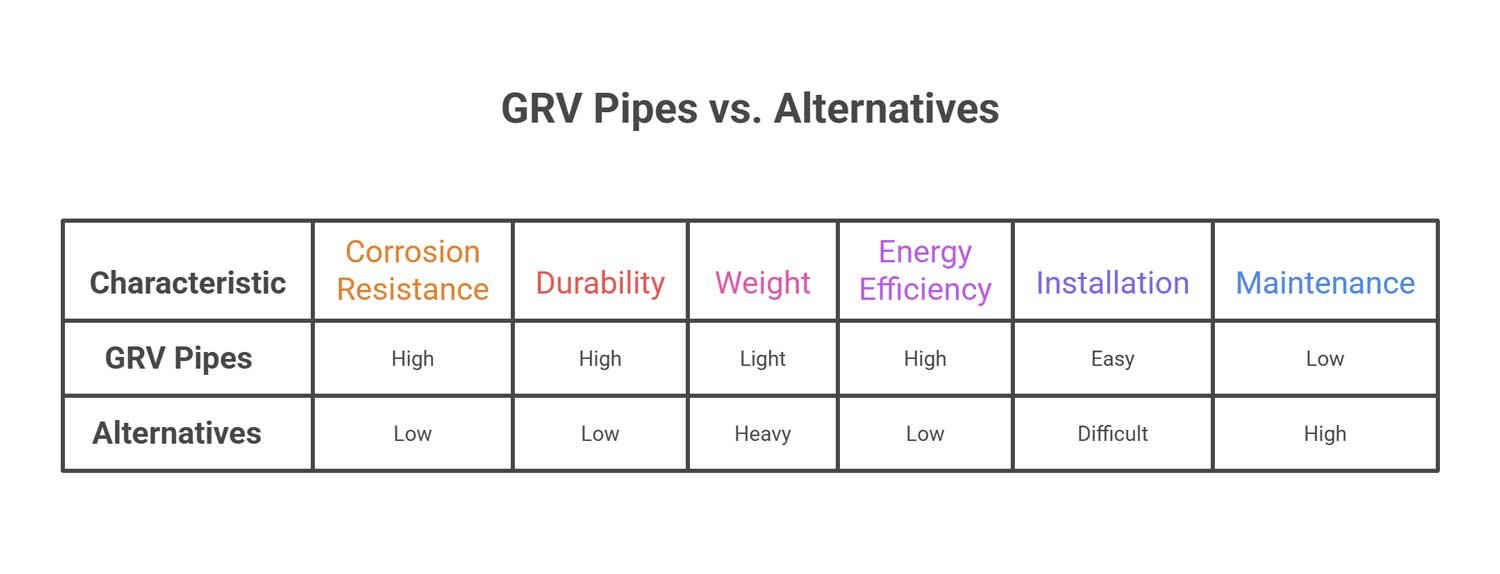

How GRV Pipes Surpasses Their Alternatives
After the metal era of pipelines, engineers were looking for a safe pipeline that could resist decades with no changes in their performance.
Corrosion Resistance: They can handle corrosive environments actively with no extra lining or coating required for a long-lasting lifespan in harsh conditions.
Durability: GRV pipes include a lifespan of over 50 years. Fortunately, they need minimal repairs or maintenance that reduce the overall costs.
Lightweight: GRV pipes are famous for their high strength-to-weight ratio compared to steel pipes, which are hard to handle and require heavy cranes.
Energy Efficiency: The resin layers of the internal surface in GRV pipes make them perfect for the transmission of fluids with lesser pumping energy requirements.
Easy Installation: GRV pipes are made in long lengths, while containing reliable jointing methods that decrease the need for professional labor and heavy machinery when low downtime is required. (Source: FuturePipeIndustries)
Lower Maintenance Need: GRV pipes can handle corrosion, pressure, and high temperatures, which can reduce the probable risks of damage and further repairs.
Installation Guidelines: How to Install GRV Pipes Properly?
GRV pipes are genuine pipelines that can be installed both under and above the ground due to their resin-modified base. Also, their lightweight made them easy to handle and transport to the leading site.
Underground vs Aboveground Installation
To protect pipes in underground cases, prepare trenches properly, push pipes carefully, and use joint lubricants to avoid leaks.
While in aboveground cases, pipe supports prevent any probable sagging, and to monitor potential damage, vibration mitigation can be helpful.
Final Wrap-Up
GRV pipes are resistant pipelines in industrial, water systems, and offshore applications due to their perfect material selection. Although the initial cost of these materials can be thought-provoking, they last for over half a century with minimal maintenance requirements, which decreases the overall costs. Choose GRV pipes when seeking both stability and durability.
FAQs
1- Is GRV the same as GRE?
No, the resin type in GRV is vinyl ester, and in GRE is epoxy.
2- Can GRV be used for potable water?
Yes, they are used in potable water with internal resin linings for safe drinking water.
3- What’s the lifespan of GRV pipes?
GRV pipes can last over 50 years or more if installed correctly.
4- How are GRV joints sealed?
These joints are sealed via butt and wraps of fiberglass or flanged types.
5- Can GRV be used above ground?
Yes, they are resistant to UV exposure, especially the GRVE types.
