How to Weld Ductile Iron Pipe: Everything You Need to Know
Welding Ductile Iron Pipe is one of the most sensitive industrial processes requiring enough expertise. This material differs in composition and characteristics from alternatives like cast iron or steel. The welding process involves preparation, setup, welding, and inspection. There are different techniques to weld ductile iron pipe: shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and gas tungsten arc welding (GTAW). Following the right guide, you can prevent possible welding issues such as cracking, wrong temperature, improper filler materials, and damaging thermal expansion. Keep reading to learn more about ductile iron pipe welding.
What Does Welding Ductile Iron Pipe Mean?
Welding ductile iron pipe is the process of joining two different pieces of ductile iron pipe together by using welding techniques for ductile iron. This is a method of joining ductile iron pipes for various applications. Referring to McWane Ductile, the ductile iron welding process requires proper techniques to ensure the longevity and integrity of the welded system of ductile iron pipe.
Composition and Characteristics of Ductile Iron
Ductile iron is actually a type of cast iron that has improved mechanical properties in comparison to traditional cast iron. The primary differences are in composition and characteristics.
Composition
Ductile iron mainly consists of iron, carbon, silicon, and a small alloying element. The alloying element, which is typically magnesium, is added to the molten iron to develop the formation of nodular graphite.
Characteristics
Ductile iron has specific characteristics that make it a more appropriate option than cast iron. Strength, ductility, machinability, durability, and corrosion resistance are examples of the characteristics ductile iron possesses more than any similar material, such as cast iron.
How Ductile Iron Differs from Cast Iron and Steel in Welding
Ductile iron, cast iron, and steel act differently in welding due to their distinct metallurgical properties.
- Since ductile iron has graphite nodules, there are a few challenges in welding ductile iron.
- Welding cast iron is quite a challenge and requires special welding techniques as it has high carbon content and graphite flakes.
- Unlike the above materials, steel is an easier option to deal with due to its homogeneous microstructure.
When welding two different materials, such as ductile iron and steel, proper consideration must be taken to create a strong bond while decreasing the risk of failure of both materials.
How to Get Prepared for Ductile Iron Pipe Welding?
There are a few tips and steps needed to prepare to weld ductile iron pipe.
- As the first step, a proper welding process must be chosen from different ductile iron pipe welding methods.
- Then, the surface must be prepared by cleaning the area. Wire brushes or chemical cleaners can be helpful for this purpose.
- Preheating ductile iron before welding is an important step in welding ductile iron pipes.
- Proper welding equipment must be set up for welding ductile iron fittings.
- After the welding process and ductile iron pipe installation, proper post-weld heat must be applied.
How to Weld Ductile Iron Pipe?
Welding ductile iron pipe is a procedure that needs appropriate consideration to ensure a successful process. In addition to the different methods of welding ductile iron pipe, there are some steps to be taken to complete the process Efficiently.

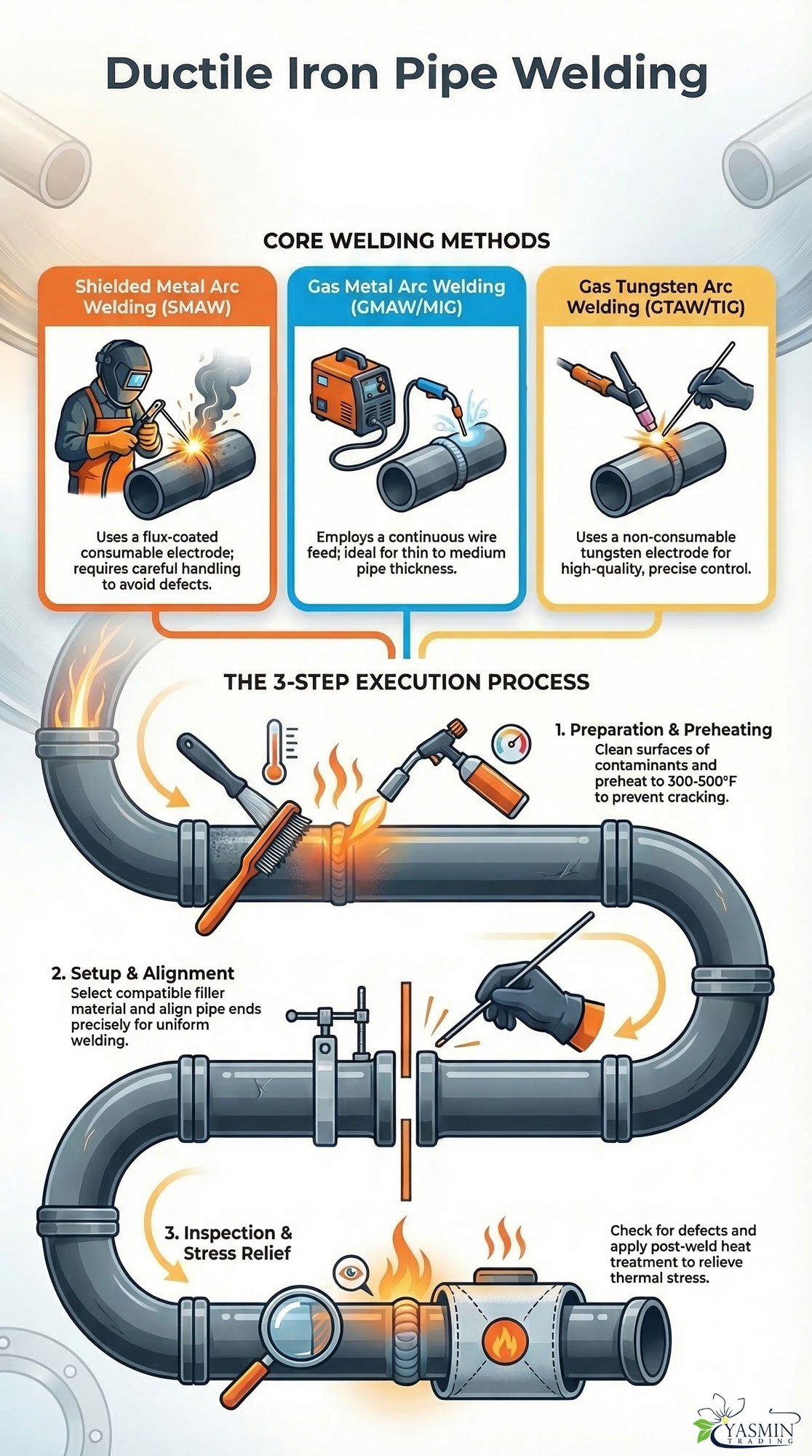

Different Welding Methods
According to Modern Casting, there are quite a few ductile iron pipe welding methods. However, the most common methods are listed below. Based on the condition, any of these methods can be applied.
Shielded Metal Arc Welding (SMAW)
In this method, a consumable electrode coated with flux is employed to create an arc. It is widely used; however, enough safety factors must be applied. Careful handling is required to avoid defects.
Gas Metal Arc Welding (GMAW)
The second method is also known as MIG welding. It uses a continuous wire feed and shielding gas. This method is specifically effective when welding materials with thin to medium thickness. Also, in the GMAW method, a good control is provided.
Gas Tungsten Arc Welding (GTAW)
The GTAW method, also known as TIG welding, implements a non-consumable tungsten electrode with a separate filler rod. By employing this method, you can achieve precise control, which makes it perfect for high-quality welds.
Step-by-Step Guide
Though there can be so many extensive steps in welding ductile iron pipe, here are only four primary steps to take for the process. Following the approach below will ensure the effective welding of ductile iron pipes, leading to high-quality results.
Preparation
In this step, the surface must be prepared for the upcoming process by being cleaned of any rust and contaminants. After that, the ductile iron pipe must be heated to 300-500°F (150-260°C) to reduce the risk of cracking.
Setup
The second step includes choosing filler material and equipment. Choose a proper welding rod for ductile iron or wire made for welding ductile iron pipe. After that, the welding machine voltage and current are set to coordinate with the filler material.
Weld
Align the pipe ends precisely to achieve a perfectly adjusted piping system. After choosing the most suitable method of welding ductile iron pipes, start the process of welding. Apply a consistent technique to achieve a uniform weld.
Inspection and Treatment
The weld must be inspected for defects. A post-weld heat treatment can be performed to relieve remaining stresses.
What Are the Common Challenges to Welding Ductile Iron Pipe?
When welding ductile iron pipes, there are a few common challenges that may come across. These challenges must be dealt with by using proper welding techniques.
Cracking and Hardness Issues
Ductile iron possesses a high carbon content. Without proper handling, this can cause cracking in the weld area. It also causes difficulty in weldability since the carbon reduces the ductility of the weld joint.
Thermal Expansion & Contraction
During the welding process, ductile iron faces considerable thermal expansion and contraction. This consecutive process of expansion and contraction creates stresses which can lead to cracking and warping.
Improper Filler Materials
In the welding process for ductile iron, the right filler material should be selected. The chosen filler has to be compatible with the base material. This way, weak joints and weld defects will be avoided.
Wrong Temperature
Reducing the risk of cracking and ensuring proper fusion when fusion welding ductile iron is possible by preheating before welding and post-weld heat treatment. Maintaining the correct temperatures would be quite a challenge.
Final Words
Welding ductile iron is of great importance as any imperfection can lead to cracking or fractures. To prevent such things, proper handling must be taken into consideration. Choosing the most suitable welding method based on the condition is the first step to take. After that, you can thoroughly think through the potential risks and challenges and come up with proper solutions to achieve a successful weld. Each step in preparation, welding, and aftercare must be notably considered.
